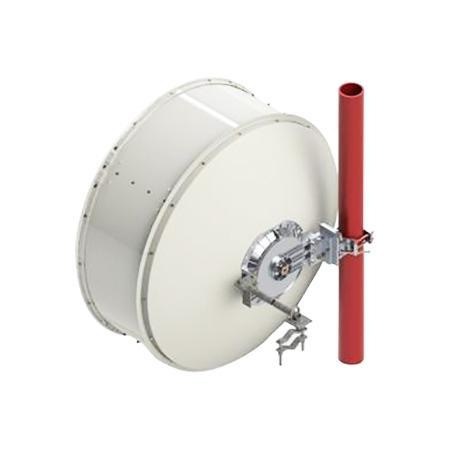

17.7-19.7 GHz 4' ValuLine HP, Low Profile Antenna

  • TESSCO SKU: 513622
  • QTY/UOM: 1 EACH
  • UPC: 729198530631
  • MFG PART #: VHLPX4-18-2WH/C

COMMSCOPE's VHLPX4-18-2 17.7 – 19.7 GHz 4 ft ValuLine high performance low-profile dual-polarized antenna. PBR220 flange. White antenna, polymer gray radome without flash

Related Media

Technical Specs

  • Manufacturer
    CommScope
  • Gain, Low
    44.4 dBi
  • Horizontal Beamwidth
    0.9 deg
  • Item Height
    50.8 in
  • Qty/ Uom
    1 Each
  • Color
    White
  • Gain, Middle
    44.7 dBi
  • Number of Struts Included
    1
  • Item Width
    50.8 in
  • Specific Frequency
    17.7-19.7 GHz
  • Maximum Rated Wind Velocity
    155 mile/h
  • Radome Included
    Yes
  • Item Length
    29.5 in
  • Vertical Beamwidth
    0.9 deg
  • Maximum VSWR
    1.30:1
  • Return Loss
    17.7 dB
  • XPD
    30 dB
  • Minimum Front Back Ratio
    73 dB
  • Gain, High
    44.9 dBi
  • Polarization
    Dual
  • Diameter
    4 ft
  • Item Weight
    71 lb
  • Flange Type
    PBR220
