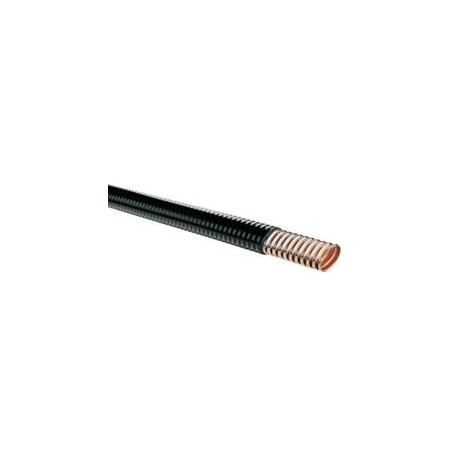

17.7-19.7 GHz Waveguide EW180

  • TESSCO SKU: 432320
  • QTY/UOM: 1 FOOT
  • UPC: 646444323208
  • MFG PART #: EW180

COMMSCOPE's EW180 17.7 – 19.7 GHz elliptical waveguide, standard jacket.

Related Media

Technical Specs

  • Manufacturer
    CommScope
  • Maximum Operating Pressure
    10
  • O.D. (in) Major Axis
    0.78 in
  • Weight (approximate lbs/ft)
    0.15
  • O.D. (in) Minor Axis
    0.48 in
  • Bending Radius H-Plane
    15 in
  • Install Temp Range (F)
    Not Specified
  • Operation Band
    17.7-19.7 GHz
  • Bending Radius E-Plane
    6 in
  • Maximum Length For 1 Hoist Grip
    200 ft
  • Qty/ Uom
    1 Foot
  • RF Impedance
    50 Ohms
  • Standard Hanger Spacing (ft)
    4' @ 125 mph
