Mobile Mark, Inc. GSA

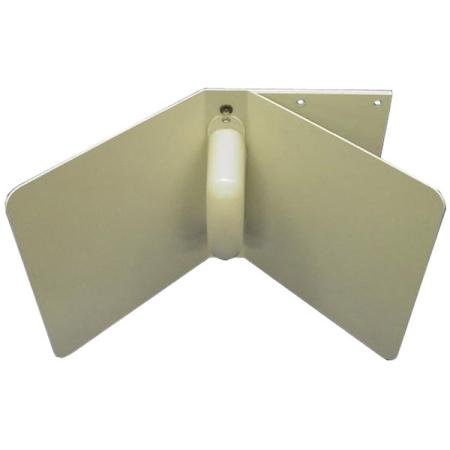

1800-2000 MHz 12dBi Corner Reflector Antenna

  • TESSCO SKU: 32054
  • QTY/UOM: 1 EACH
  • UPC: 729198320546
  • MFG PART #: SCR12-1900-WHT

MOBILE MARK's SCR12-1900-WHT 1.8 – 2.0 GHz corner reflector antenna. 12 dBi gain, 100 W. N Female termination. 22 dB front to back. Includes mounting hardware. White powder coat finish.

Technical Specs

  • Maximum VSWR
    2.0:1
  • Polarization
    Vertical
  • Item Height
    7 in
  • Item Width
    10.5 in
  • Maximum Power
    100 W
  • Vertical Beamwidth
    48 deg
  • Maximum Rated Wind Velocity
    125 mile/h
  • Qty/ Uom
    1 Each
  • Type of Hardware Included
    Mast Mount (2.5" OD Max)
  • Jumper Included
    No
  • Specific Frequency
    1800-2000 MHz
  • Tuned Frequency (MHz)
    N/A
  • Item Weight
    2 lb
  • Gain dBi
    12 dBi
  • Connector Placement
    Back
  • Gain dBd
    8.85 dBd
  • RF Connectors
    N Female
  • Horizontal Beamwidth
    38 deg
  • Manufacturer
    Mobile Mark, Inc.
  • Lightning Protection
    DC Ground
