1800TLWD 100-ft Guyed Tower Kit

  • TESSCO SKU: 326838
  • QTY/UOM: 1 EACH
  • UPC: 888063268380
  • MFG PART #: C05-002-026

The Sabre Site Solutions C05-002-026 1800 TLWD Guyed Tower Kit comes complete with all of the hardware you need to construct a 100-ft guyed tower. All components are hot-dip galvanized for years of worry-free corrosion protection in even the harshest environments. Included with your complete C05-002-026 1800 TLWD Guyed Tower Kit:

(10) 1800 TLWD standard 10-ft tower sections
(9) Bolt assemblies, ½-in-13 × 1 ¾-in
(90) Bolt assemblies, ½-in-13 × 2-in
(9) U-bolt assemblies, ½-in-13
(18) Bent bolt assemblies for guy bracket
(3) Jaw and eye turnbuckle, ½-in × 12-in
(6) Jaw and eye turnbuckle, ¾-in × 12-in
(9) Shackle screws, ⅝-in
(12) Heavy-duty open thimbles, ⅜-in
(6) Heavy-duty open thimbles, ½-in
(3) Wire rope clips, ¼-in
(6) Dead-end sleeves (ice clips), ¼-in
(6) Dead-end sleeves (ice clips), 5/16-in
(6) Dead-end sleeves (ice clips), ⅜-in
(6) Dead-end grips, ¼-in
(6) Dead-end grips, 5/16-in
(6) Dead-end grips, ⅜-in

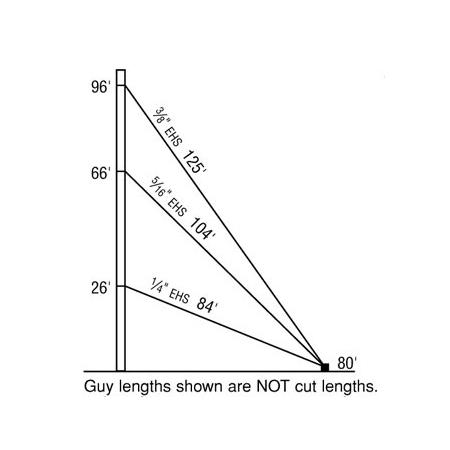

(294-ft) EHS guy strand, ¼-in
(343-ft) EHS guy strand, 5/16-in
(414-ft) EHS guy strand, ⅜-in
(3) Leg caps
(9) Guy brackets

Normal soil foundation designs are found below in the Attachments section. Geotechnical surveys are always recommended prior to any tower installation. If you would like for TESSCO to recommend a tower for your particular application, complete a TESSCO Tower Design Questionnaire.

Purchasing a tower from TESSCO without submitting the questionnaire will be done at your own risk.

Related Media

Technical Specs

  • Leg Type
    Tubular
  • EPA, 70 MPH, No Ice
    89.8
  • Leg Connection
    Three-hole bolted flange
  • Manufacturer
    Sabre
  • EPA, 90 MPH, No Ice
    53.2
  • Qty/ Uom
    1 Each
  • Tower Height
    100 ft
  • Climbing Application
    Incorporated into tower face
  • Tower Type
    Guyed
