1800TLWD 170-ft Guyed Tower Kit

  • TESSCO SKU: 326445
  • QTY/UOM: 1 EACH
  • UPC: 888063264450
  • MFG PART #: C05-002-040

The Sabre Site Solutions C05-002-040 1800 TLWD Guyed Tower Kit comes complete with all of the hardware you need to construct a 170-ft guyed tower. All components are hot-dip galvanized for years of worry-free corrosion protection in even the harshest environments. Includes:

(17) 1800 TLWD standard 10-ft tower sections
(9) Bolt assemblies, ½-in-13 × 1 ¾-in
(153) Bolt assemblies, ½-in-13 × 2-in
(12) U-bolt assemblies, ½-in-13
(24) Bent bolt assemblies for guy bracket
(12) Jaw and eye turnbuckle, ¾-in × 12-in
(12) Shackle screws, ⅝-in
(12) Heavy-duty open thimbles, ⅜-in
(12) Heavy-duty open thimbles, ½-in
(3) Wire rope clips, 5/16-in
(12) Dead-end sleeves (ice clips), 5/16-in
(12) Dead-end sleeves (ice clips), ⅜-in
(12) Dead-end grips, 5/16-in
(12) Dead-end grips, ⅜-in

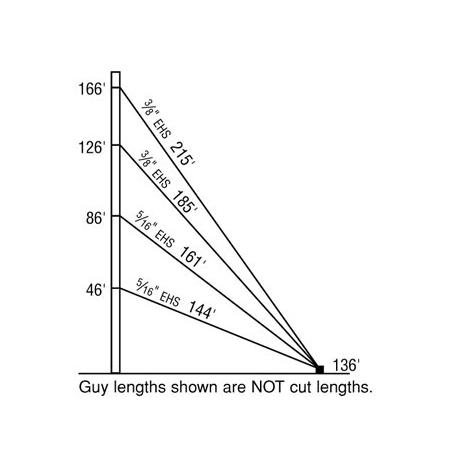

(1020-ft) EHS guy strand, 5/16-in
(1320-ft) EHS guy strand, ⅜-in
(3) Leg caps
(12) Guy brackets

Normal soil foundation designs are found below in the Attachments section. Geotechnical surveys are always recommended prior to any tower installation. If you would like for TESSCO to recommend a tower for your particular application please fill out and submit a TESSCO Tower Design Questionnaire.

If you choose to purchase a tower from TESSCO (as a kit or in parts) without submitting a Tower Design Questionnaire, you do so at your own risk. TESSCO is not responsible for the subsequent success or failure of your tower installation or damages that may result from improper installation or overloading.

Related Media

Technical Specs

  • Leg Type
    Tubular
  • EPA, 70 MPH, No Ice
    78.9
  • Leg Connection
    Three-hole bolted flange
  • Manufacturer
    Sabre
  • EPA, 90 MPH, No Ice
    46.8
  • Qty/ Uom
    1 Each
  • Tower Height
    170 ft
  • Climbing Application
    Incorporated into tower face
  • Tower Type
    Guyed
