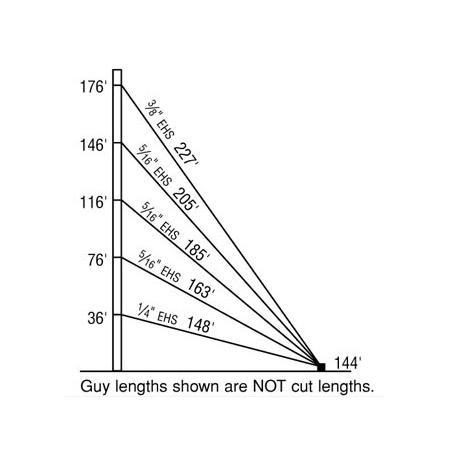

1800TLWD 180-ft Guyed Tower Kit

  • TESSCO SKU: 376578
  • QTY/UOM: 1 EACH
  • UPC: 888063765780
  • MFG PART #: C05-002-042

The Sabre Site Solutions C05-002-042 1800 TLWD Guyed Tower Kit comes complete with all of the hardware you need to construct a 180-ft guyed tower. All components are hot-dip galvanized for years of worry-free corrosion protection in even the harshest environments. Included with your complete C05-002-042 1800 TLWD Guyed Tower Kit:

(18) 1800 TLWD standard 10-ft tower sections
(9) Bolt assemblies, ½-in-13 × 1 ¾-in
(162) Bolt assemblies, ½-in-13 × 2-in
(15) U-bolt assemblies, ½-in-13
(30) Bent bolt assemblies for guy bracket
(3) Jaw and eye turnbuckle, ½-in × 12-in
(12) Jaw and eye turnbuckle, ¾-in × 12-in
(15) Shackle screws, ⅝-in
(24) Heavy-duty open thimbles, ⅜-in
(6) Heavy-duty open thimbles, ½-in
(3) Wire rope clips, ¼-in
(6) Dead-end sleeves (ice clips), ¼-in
(18) Dead-end sleeves (ice clips), 5/16-in
(6) Dead-end sleeves (ice clips), ⅜-in
(6) Dead-end grips, ¼-in
(18) Dead-end grips, 5/16-in
(6) Dead-end grips, ⅜-in
(507-ft) EHS guy strand, ¼-in
(1830-ft) EHS guy strand, 5/16-in
(753-ft) EHS guy strand, ⅜-in
(3) Leg caps
(15) Guy brackets

Normal soil foundation designs are found below in the Attachments section. Geotechnical surveys are always recommended prior to any tower installation. If you would like for TESSCO to recommend a tower for your particular application, complete a TESSCO Tower Design Questionnaire.

Purchasing a tower from TESSCO without submitting the questionnaire will be done at your own risk.

Related Media

Technical Specs

  • Manufacturer
    Sabre
  • EPA, 70 MPH, No Ice
    77.6
  • EPA, 90 MPH, 1/2 Ice
    51.4 in
  • Guy Strand Size (in)
    1/4, 5/16, 3/8
  • Inner Anchor Block Design
    N/A
  • Base Pier Foundation Design
    B (See Base Pier Foundation Design Attachment)
  • Inner Anchor Shaft
    N/A
  • Outer Anchor Shaft
    N/A
  • Sector Mount Compatible
    No
  • Brace Connection
    Welded
  • Tower Type
    Guyed
  • Outer Anchor Block Design
    N/A
  • Anchor Block Design
    A8 (See Anchor Block Design Attachment)
  • Anchor Shaft
    033 (See 1800 TLWD Guyed Tower Anchor Shafts Attachment)
  • Leg Connection
    Three-hole bolted flange
  • Type of Line Support
    N/A - Attach directly to bracing members
  • EPA, 110 MPH, No Ice
    30.2
  • Maximum Sidearm Length (ft)
    6
  • Tower Height
    180 ft
  • Qty/ Uom
    1 Each
  • Leg Size
    1.66 in
  • Bracing Type
    Solid Serpentine
  • Bracing Size
    1/2 in
  • Platform Compatible
    No
  • Leg Type
    Tubular
  • Climbing Application
    Incorporated into tower face
  • Load Location
    Top
  • EPA, 70 MPH, 1/2 Ice
    103.7 in
  • EPA, 110 MPH, 1/2 Ice
    0 in
  • Engineering
    Pre-engineered
  • EPA, 90 MPH, No Ice
    46
