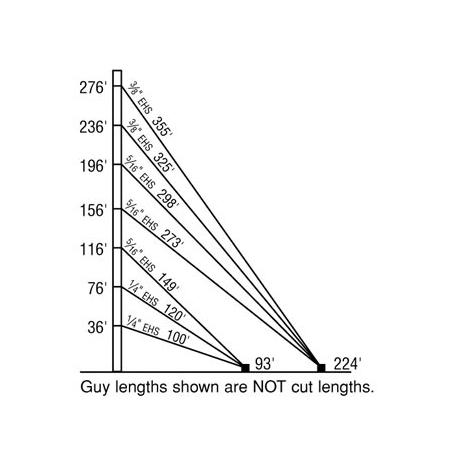

1800TLWD 280-ft Guyed Tower Kit

  • TESSCO SKU: 326728
  • QTY/UOM: 1 EACH
  • UPC: 888063267284
  • MFG PART #: C05-002-062

The Sabre Site Solutions C05-002-062 1800 TLWD Guyed Tower Kit comes complete with all of the hardware you need to construct a 280-ft guyed tower. All components are hot-dip galvanized for years of worry-free corrosion protection in even the harshest environments. Included with your complete C05-002-062 1800 TLWD Guyed Tower Kit:

(28) 1800 TLWD standard 10-ft tower sections
(9) Bolt assemblies, ½-in-13 × 1 ¾-in
(252) Bolt assemblies, ½-in-13 × 2-in
(21) U-bolt assemblies, ½-in-13
(42) Bent bolt assemblies for guy bracket
(6) Jaw and eye turnbuckle, ½-in × 12-in
(15) Jaw and eye turnbuckle, ¾-in × 12-in
(21) Shackle screws, ⅝-in
(30) Heavy-duty open thimbles, ⅜-in
(12) Heavy-duty open thimbles, ½-in
(6) Wire rope clips, ¼-in
(12) Dead-end sleeves (ice clips), ¼-in
(18) Dead-end sleeves (ice clips), 5/16-in
(12) Dead-end sleeves (ice clips), ⅜-in
(12) Dead-end grips, ¼-in
(18) Dead-end grips, 5/16-in
(12) Dead-end grips, ⅜-in
(756-ft) EHS guy strand, ¼-in
(2379-ft) EHS guy strand, 5/16-in
(2247-ft) EHS guy strand, ⅜-in
(3) Leg caps
(21) Guy brackets

Normal soil foundation designs are found below in the Attachments section. Geotechnical surveys are always recommended prior to any tower installation. If you would like for TESSCO to recommend a tower for your particular application, complete a TESSCO Tower Design Questionnaire.

Purchasing a tower from TESSCO without submitting the questionnaire will be done at your own risk.

Related Media

Technical Specs

  • Manufacturer
    Sabre
  • EPA, 70 MPH, No Ice
    71.1
  • EPA, 90 MPH, 1/2 Ice
    0 in
  • Guy Strand Size (in)
    1/4, 5/16, 3/8
  • Inner Anchor Block Design
    A4 (See Inner Anchor Block Design Attachment)
  • Base Pier Foundation Design
    B (See Base Pier Foundation Design Attachment)
  • Inner Anchor Shaft
    026 (See 1800 TLWD Guyed Tower Anchor Shafts Attachment)
  • Outer Anchor Shaft
    027 (See 1800 TLWD Guyed Tower Anchor Shafts Attachment)
  • Sector Mount Compatible
    No
  • Brace Connection
    Welded
  • Tower Type
    Guyed
  • Anchor Block Design
    N/A
  • Outer Anchor Block Design
    A8 (See Outer Anchor Block Design Attachment)
  • Anchor Shaft
    N/A
  • Type of Line Support
    N/A - Attach directly to bracing members
  • Leg Connection
    Three-hole bolted flange
  • EPA, 110 MPH, No Ice
    22.9
  • Maximum Sidearm Length (ft)
    6
  • Tower Height
    280 ft
  • Qty/ Uom
    1 Each
  • Leg Size
    1.66 in
  • Bracing Type
    Solid Serpentine
  • Bracing Size
    1/2 in
  • Platform Compatible
    No
  • Leg Type
    Tubular
  • Climbing Application
    Incorporated into tower face
  • Load Location
    Top
  • EPA, 70 MPH, 1/2 Ice
    82.1 in
  • Engineering
    Pre-engineered
  • EPA, 110 MPH, 1/2 Ice
    0 in
  • EPA, 90 MPH, No Ice
    41.5
