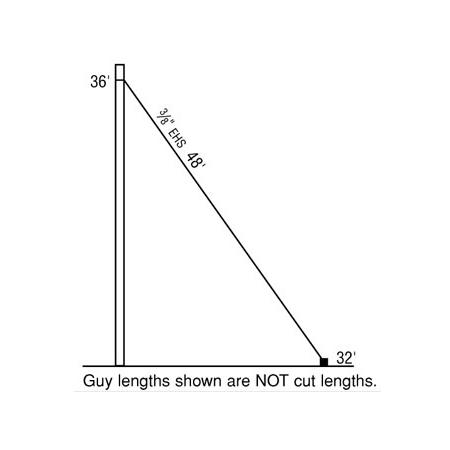

1800TLWD 40-ft Guyed Tower Kit

  • TESSCO SKU: 376581
  • QTY/UOM: 1 EACH
  • UPC: 888063765810
  • MFG PART #: C05-002-014

The Sabre Site Solutions C05-002-014 1800 TLWD Guyed Tower Kit comes complete with all of the hardware you need to construct a 40-ft guyed tower. All components are hot-dip galvanized for years of worry-free corrosion protection in even the harshest environments. Included with your complete C05-002-014 1800 TLWD Guyed Tower Kit:

(4) 1800 TLWD standard 10-ft tower sections
(9) Bolt assemblies, ½-in-13 × 1 ¾-in
(36) Bolt assemblies, ½-in-13 × 2-in
(3) U-bolt assemblies, ½-in-13
(6) Bent bolt assemblies for guy bracket
(3) Jaw and eye turnbuckle, ¾-in × 12-in
(3) Shackle screws, ⅝-in
(6) Heavy-duty open thimbles, ½-in
(3) Wire rope clips, ⅜-in
(6) Dead-end sleeves (ice clips), ⅜-in
(6) Dead-end grips, ⅜-in
(164-ft) EHS guy strand, ⅜-in
(3) Leg caps
(3) Guy brackets

Normal soil foundation designs are found below in the Attachments section. Geotechnical surveys are always recommended prior to any tower installation. If you would like for TESSCO to recommend a tower for your particular application please fill out and submit a TESSCO Tower Design Questionnaire.

If you choose to purchase a tower from TESSCO (as a kit or in parts) without submitting a Tower Design Questionnaire, you do so at your own risk. TESSCO is not responsible for the subsequent success or failure of your tower installation or damages that may result from improper installation or overloading.

Related Media

Technical Specs

  • Manufacturer
    Sabre
  • EPA, 70 MPH, No Ice
    110.5
  • EPA, 90 MPH, 1/2 Ice
    86.6 in
  • Guy Strand Size (in)
    1/4, 5/16, 3/8
  • Inner Anchor Block Design
    N/A
  • Base Pier Foundation Design
    A (See Base Pier Foundation Design Attachment)
  • Inner Anchor Shaft
    N/A
  • Outer Anchor Shaft
    N/A
  • Sector Mount Compatible
    No
  • Brace Connection
    Welded
  • Tower Type
    Guyed
  • Anchor Block Design
    A4 (See Anchor Block Design Attachment)
  • Outer Anchor Block Design
    N/A
  • Anchor Shaft
    026 (See 1800 TLWD Guyed Tower Anchor Shafts Attachment)
  • Type of Line Support
    N/A - Attach directly to bracing members
  • Leg Connection
    Three-hole bolted flange
  • EPA, 110 MPH, No Ice
    43
  • Maximum Sidearm Length (ft)
    6
  • Tower Height
    40 ft
  • Qty/ Uom
    1 Each
  • Leg Size
    1.66 in
  • Bracing Type
    Solid Serpentine
  • Bracing Size
    1/2 in
  • Platform Compatible
    No
  • Leg Type
    Tubular
  • Climbing Application
    Incorporated into tower face
  • Load Location
    Top
  • EPA, 70 MPH, 1/2 Ice
    146.8 in
  • Engineering
    Pre-engineered
  • EPA, 110 MPH, 1/2 Ice
    55.5 in
  • EPA, 90 MPH, No Ice
    65.7
