EMR Corporation

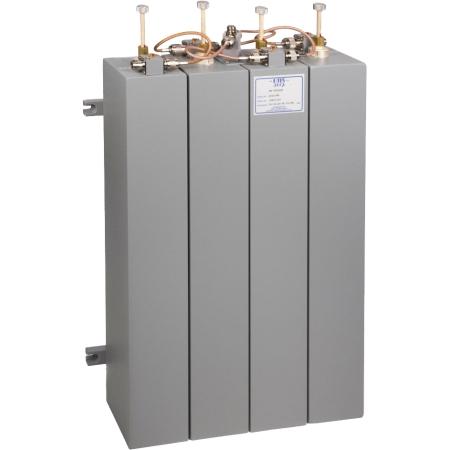

190-225 MHz Pass Notch Duplexer, 1-15MHz Space,NF

  • TESSCO SKU: 213005
  • QTY/UOM: 1 EACH
  • UPC: 646444366984
  • MFG PART #: 64544/SND

EMR 190-225 MHz Pass Notch duplexer 4 cavities, 1 to 10 MHz spacing. Insert. loss 1.3 dB, 150Watt N/f conn. *TESSCO tunable.*

Technical Specs

  • Manufacturer
    EMR Corporation
  • Item Length
    34.5 in
  • Tuning Method
    TESSCO or Field Tune
  • Insertion Loss (Tx/Ant-dB)
    1.2 @1MHz, .8 @15MHz
  • Maximum Power Input
    150 W
  • Insertion Loss (Rx/Ant-dB)
    1.2 @1MHz, .8 @15MHz
  • Qty/ Uom
    1 Each
  • Number of Cavities
    4
  • Item Width
    20.125 in
  • Finish
    Tek Black
  • Minimum Separation
    1 MHz
  • Cavity Size
    4 in
  • Frequency Range
    190-225 MHz
  • Maximum VSWR
    1.25:1
  • Item Height
    19.25 in
  • Minimum Isolation
    80 dB
