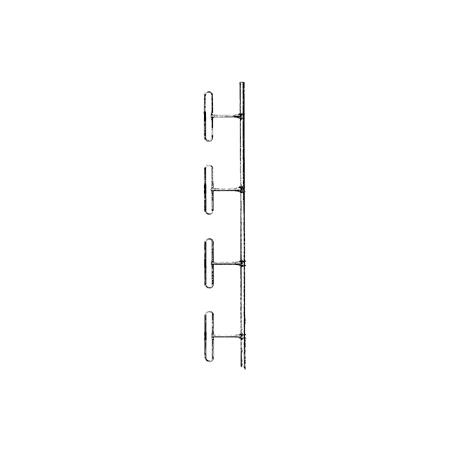

195-245MHz 8.5dB 4 Element Dipole Antenna,1/4 Wave

  • TESSCO SKU: 28767
  • QTY/UOM: 1 EACH
  • UPC: 729198287672
  • MFG PART #: SD214-SF3P4SNMD00

SINCLAIR's SD214-SF3P4SNM(D00) 195 – 245 MHz four-dipole antenna, 8.5 dB offset gain. 250 W, 0 deg. downtilt. Includes harness with N Male termination, internal to mast, 1/4 wave spacing. Order mounting clamp.

Technical Specs

  • Maximum Rated Wind Velocity
    145 mile/h
  • Manufacturer
    Sinclair Technologies
  • RF Connectors
    N Male
  • Vertical Beamwidth
    17 deg
  • Maximum VSWR
    1.5:1
  • Jumper Included
    Yes
  • Horizontal Beamwidth
    210 deg
  • Item Height
    180 in
  • Tuned Frequency (MHz)
    N/A
  • Maximum Power
    250 W
  • Lightning Protection
    DC Ground
  • Item Weight
    59 lb
  • Qty/ Uom
    1 Each
  • Gain dBd
    8.5 dBd
  • Type of Hardware Included
    None
  • Specific Frequency
    195-245 MHz
  • Antenna Pattern
    Offset
  • Item Width
    4 in
  • Item Length
    19 in
  • Connector Placement
    Pigtail
  • Polarization
    Vertical
  • Gain dBi
    10.6 dBi
