NewMar, Inc.

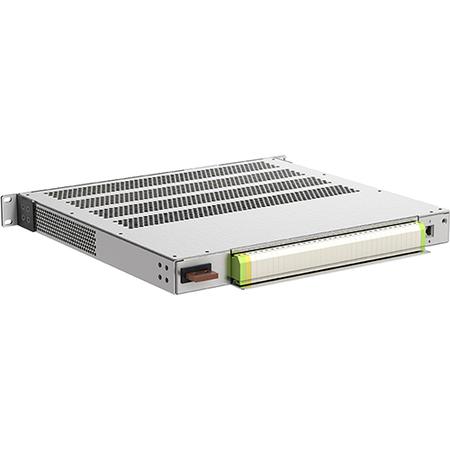

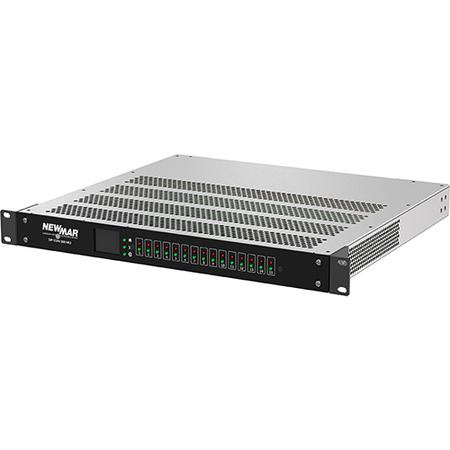

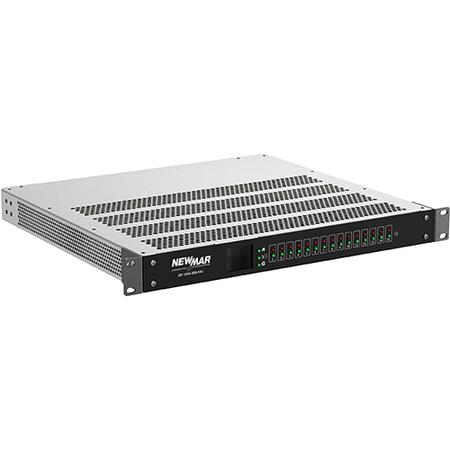

1RU 48 V 300 A Centri Series ControlGate Distribution Panel, Up to 15 Load Circuits
TESSCO SKU: 621133
UPC: 621133
QTY/UOM:
1/each
MFG PART #: DP-15IN-300-MU
Sign In or Register
for preferred pricing!
Added To Cart
NewMar’s Centri Series ControlGate Distribution Panel is a 1U rack-mount power distribution panel. It supports up to 15 load circuits, each protected by individual ControlGate circuits. The unit delivers real-time power monitoring for connected devices, accessible locally and over the Ethernet through the integrated web server.
Features:
- 15 programmable ControlGate channels for current values up to 50 A
- IP-rated terminal blocks for simplified connection
- Independent on/off control with remote reset
- User-adjustable over/under-voltage protection and trip curve for each channel
- Programmable restart delay to protect against in-rush current failures
- Integrated HTTP web server for remote monitoring and control
- Internally hosted webpage, plug-and-play with no additional software required
- TCP/IP communications with watchdog timer
- SNMP v2 and v3
- Email notifications via SMTP
- Front-panel LCD display and individual channel indicators
- For local monitoring of status, input voltage and current draw for each channel
