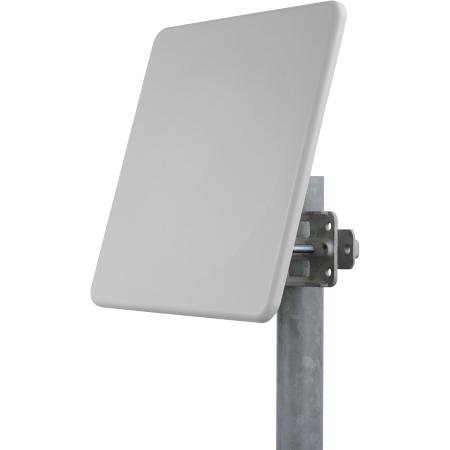

2.3-2.7 GHz Flat Panel, Triple Pol Antenna

  • TESSCO SKU: 377367
  • QTY/UOM: 1 EACH
  • UPC: 888063773679
  • MFG PART #: MA-WA24-TPMIMO

The Mars MA-WA24-TPMIMO Triple Polarization antenna provides coverage of 2.3-2.7 GHz frequency band in a single antenna radome. The antenna features 3x N Female connectors and is specifically designed for MIMO applications. The antenna has a light weight and durable construction with UV protected radome.

Related Media

Technical Specs

  • Gain dBi
    11 dBi, 14 dBi
  • Polarization
    +/- 45 Degrees, Vertical
  • Maximum VSWR
    1.7:1
  • Specific Frequency
    2300-2700 MHz
  • Type of Jumper Included
    None
  • Jumper Included
    No
  • Item Width
    12 in
  • Electrical Downtilt
    Fixed
  • Item Height
    12 in
  • Horizontal Beamwidth
    38 deg, 37 deg
  • Item Weight
    3.31 lb
  • Manufacturer
    Mars Antennas
  • Minimum Front Back Ratio
    30 dB
  • Item Length
    0.6 in
  • Maximum Power
    10 W
  • Gain dBd
    12.85 dBd, 9.85 dBd
  • Lightning Protection
    DC Ground
  • Fixed Electrical Downtilt
    0 deg
  • RF Connectors
    N Female
  • Qty/ Uom
    1 Each
  • Type of Hardware Included
    None
  • Maximum Rated Wind Velocity
    125 mile/h
