Radio Waves GSA

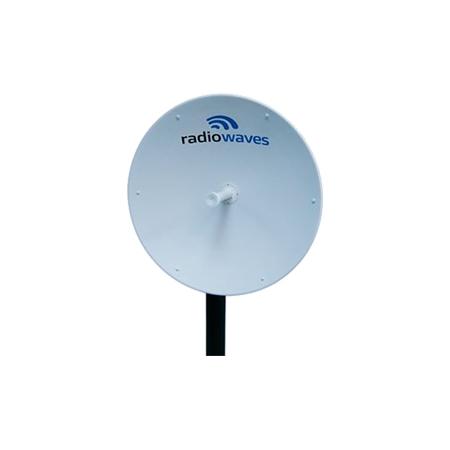

2.4-2.7 GHz 24.3dBi 3' Parabolic Dish, N Female

  • TESSCO SKU: 51743
  • QTY/UOM: 1 EACH
  • UPC: 729198517434
  • MFG PART #: SPD3-2.4NS

Radio Waves' SPD3-2.4NS 0.9 m | 3 ft standard performance parabolic reflector antenna features 24.1 dBi gain at mid-band frequency. Dual-polarized, 2.4 - 2.7 GHz, N female connector, 1.5:1 VSWR, -14 dB return loss. Radome is not included.

Related Media

Technical Specs

  • XPD
    30 dB
  • Specific Frequency
    2.4 - 2.7 GHz
  • Maximum VSWR
    1.5:1
  • Return Loss
    14 dB
  • Minimum Front Back Ratio
    30 dB
  • Gain, High
    24.6 dBi
  • Item Weight
    35 lb
  • Gain, Low
    23.6 dBi
  • Horizontal Beamwidth
    9.5 deg
  • Qty/ Uom
    1 Each
  • Gain, Middle
    24.1 dBi
  • Item Width
    34.8 in
  • Flange Type
    N Female
  • Diameter
    3 ft
  • Vertical Beamwidth
    9.5 deg
  • Radome Included
    No
  • Polarization
    Dual
  • Maximum Rated Wind Velocity
    125 mile/h
  • Item Height
    36 in
  • Manufacturer
    Radio Waves
