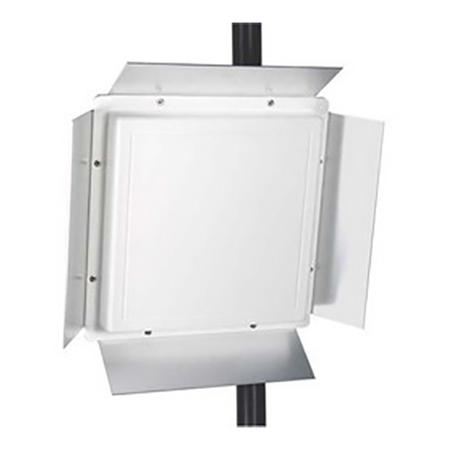

2.4 GHz 15.5 dBi Flat Panel Antenna with N Female Connector

L-COM's 2.4 GHz 15.5 dBi flat panel antenna with N Female connector. This high gain antenna is designed specifically for IEEE 802.11b/g/n applications in the 2.4 GHz ISM band. It offers superior performance in a compact and easy to install package. Its innovative reflector system provides excellent front-to-back ratio, significantly reducing background noise and interference.

Its unique design offers a 30% lower profile than similar RF antennas, offering a more compact alternative to Yagi or grid antennas for medium range point-to-point links.

Features:

• Low loss solid brass elements and DC Short lightning protection
• Can be installed for either vertical or horizontal polarization
• Durable UV-stable, UL flame rated radome
• Excellent front-to-back ratio

Applications:

• Bluetooth® and Public Wireless Hotspot
• Directional antenna applications
• 2.4 GHz ISM Band
• IEEE 802.11b, 802.11g, 802.11n (Pre-N, Draft-N) Wireless LAN Applications
• Wi-Fi and Wireless Video Systems

Notes:

• It is supplied with a 60-degree tilt and swivel mast mount kit
• Ideal for use at subscriber sites, and offers a cost-effective Customer Premise Equipment (CPE) solution
  • Also suitable for small base station "micro-cell" sites
