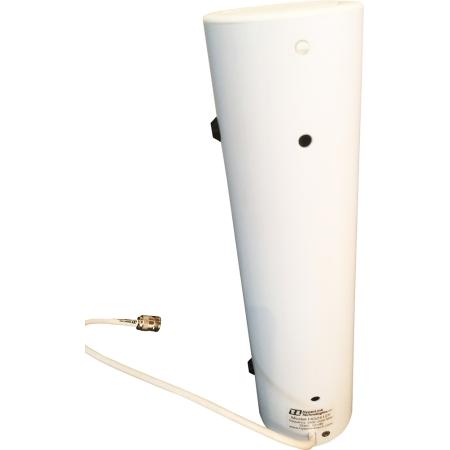

2.4 GHz Enclosed Yagi Antenna 12 dBi N Female

  • TESSCO SKU: 506798
  • QTY/UOM: 1 EACH
  • UPC: 822335075801
  • MFG PART #: HG2412Y-NF

L-COM CONNECTIVITY PRODUCT's HG2412Y-NF Hypergain HG2412Y radome enclosed Yagi Wi-Fi antenna features high gain and a 45 deg. beam width. It is ideally suited for directional and multipoint IEEE 802.11b, 802.11g and 802.11n wireless LANs, Bluetooth(R), public wireless hotspot applications and other systems operating in the 2.4 GHz ISM band. The unique design of this antenna allows it to be installed for either vertical or horizontal polarization. This WiFi antenna is enclosed within a UV-stable, UL flame rated radome for all-weather operation. The HG2412Y antenna is supplied with a 60 deg. tilt and swivel mast mount kit.

Related Media

Technical Specs

  • Item Weight
    2.9 lb
  • Jumper Included
    No
  • Electrical Downtilt
    Fixed
  • Gain dBd
    3.85 dBd
  • Specific Frequency
    2400-2500 MHz
  • Item Length
    17.9 in
  • Maximum VSWR
    1.8:1
  • Fixed Electrical Downtilt
    0 deg
  • Polarization
    Dual
  • Maximum Rated Wind Velocity
    130 mile/h
  • Item Width
    3.3 in
  • Connector Placement
    Bottom
  • Lightning Protection
    DC Short
  • Manufacturer
    L-Com Connectivity Product
  • Maximum Power
    100 W
  • RF Connectors
    N Female, N Female
  • Qty/ Uom
    1 Each
  • Gain dBi
    12 dBi
