Tripp Lite

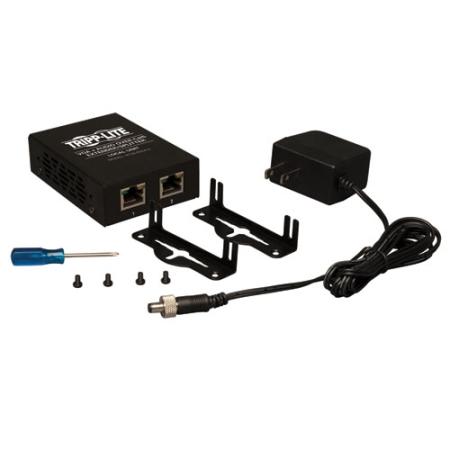

2-Port VGA w/Aud over Cat5/6 Extender Splitter
GSA
TESSCO SKU: 585274
UPC: 037332178411
QTY/UOM: 1/each
MFG PART #: B132-002A-2

TRIPP LITE's B132-002A-2 B132-002A-2 allows you to split a single VGA video and audio signal into 2. Along with a B132-100A or B132-100A-WP-1 remote receiver unit, you can extend a 1920 x 1440 60 Hz video and audio signal up to 500 ft, or a 1024 x 768, 60Hz video and audio signal up to 1,000 ft, when using 24Awg, solid wire CAT 5e / CAT 6 cable, such as Tripp Lite's N022-01K-GY CAT 5 and N222-01K-GY CAT 6. The range and number of monitors/speakers can be further expanded by adding B132-110A repeater units. Connect up to 4 remote units in a repeater chain 3 repeaters and 1 receiver, with a set of monitor and speakers at each location. A 1920 x 1440, 60 Hz video and audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768, 60 Hz video and audio signal can be extended up to 1,000 ft from the first repeater in the chain to the last receiver. For optimal video image quality between 500 and 1,000 ft, use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. Includes mounting hardware that allows unit to be wall mounted, rack mounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
