20-Port Sector Antenna, 65 Deg HPBW and 90 Deg HPBW

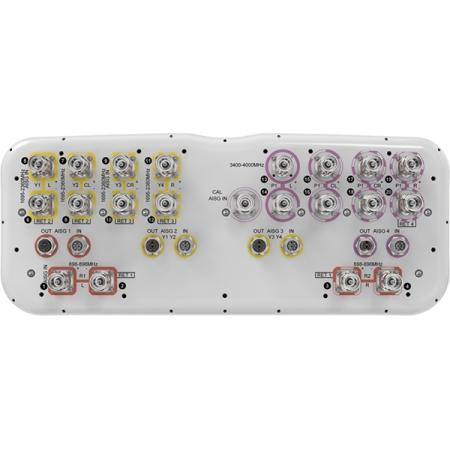

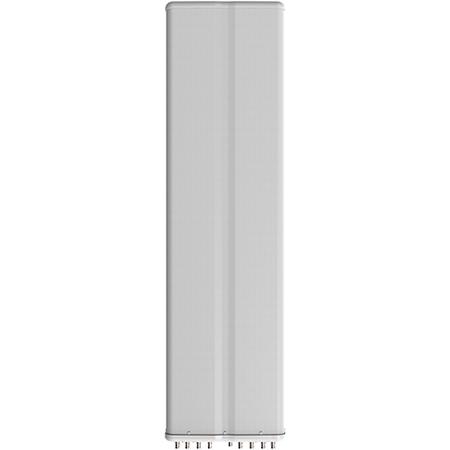

ANDREW an Amphenol company's outdoor 20-port multiband sector antenna. This light gray (RAL 7035) antenna is equipped with twenty 4.3-10 Female connectors located on the bottom. The endcap design provides improved wind loading performance.

Specifications:

• 4x 698 - 896 and 8x 1695 - 2360 MHz, 65 Deg HPBW, and 8 x 3400 - 4000 MHz, 90 Deg HPBW
• 4 x RET
• Fiberglass, UV resistant radome
• Aluminum reflector

Features:

• Multiband FDD antenna featuring C-Band 8T8R functionality
• Includes a separate RET for C-band array
• The same dimensions as existing 8 and 12-port FDD capable antennas

Includes:

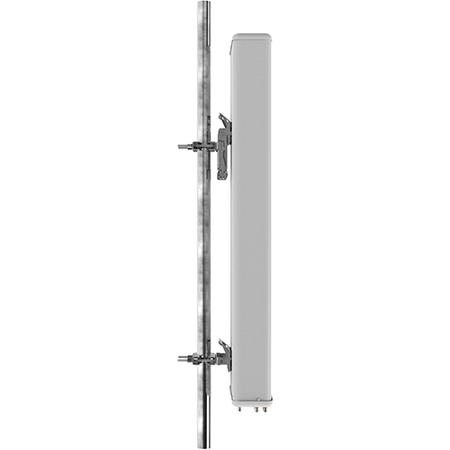

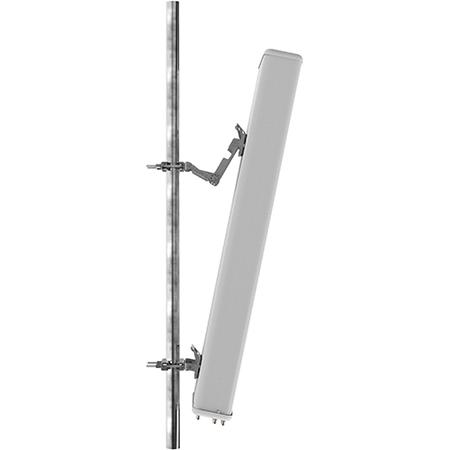

• Wide Profile Antenna Downtilt Mounting Kit for 2.4 - 4.5-inch OD round members
  • Kit contains one scissor top and one bottom bracket set

Compliance/Certification:

• CE and RoHS
• Designed, manufactured and/or distributed under ISO 9001:2015
