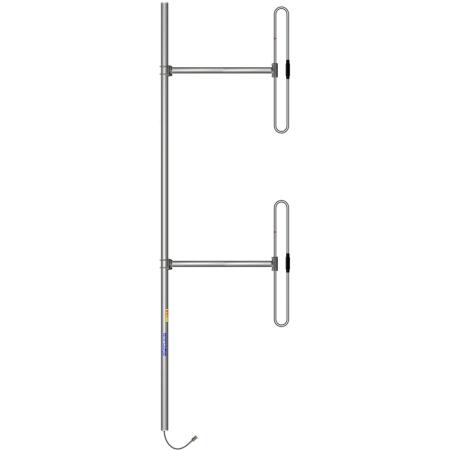

216-225 MHz 5dB 2 Element Dipole Antenna, 1/2 wave

  • TESSCO SKU: 438601
  • QTY/UOM: 1 EACH
  • UPC: 646444386012
  • MFG PART #: SD212-SF3P2SNM

SINCLAIR's SD212-SF3P2SNM 216 – 225 MHz dual dipole antenna 5.0 dB offset gain. 300 W. Includes harness with N Male termination. Internal to mast. 1/2 wave spacing. Order mounting clamps.

Technical Specs

  • Vertical Beamwidth
    34 deg
  • Maximum VSWR
    1.5:1
  • Jumper Included
    Yes
  • Horizontal Beamwidth
    210 deg
  • Maximum Power
    300 W
  • Lightning Protection
    DC Ground
  • Item Weight
    16 lb
  • Qty/ Uom
    1 Each
  • Gain dBd
    4.5 dBd
  • Specific Frequency
    190-225 MHz
  • Antenna Pattern
    Bidirectional
  • Type of Hardware Included
    None
  • Item Width
    3 in
  • Item Length
    30.3 in
  • Tuned Frequency (MHz)
    N/A
  • Item Height
    120 in
  • Connector Placement
    Pigtail
  • Polarization
    Vertical
  • Maximum Rated Wind Velocity
    155 mile/h
  • Manufacturer
    Sinclair Technologies
  • Gain dBi
    6.6 dBi
  • RF Connectors
    N Male
