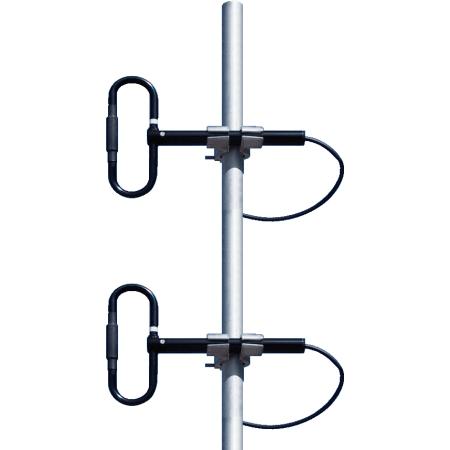

230 - 330 MHz 3 - 6 dBd 2 Element Dipole Array Antenna with N Male Connector
Telewave's 230 - 330 MHz 3 - 6 dBd dual element dipole array antenna with N Male connector. This antenna consists of a precision phasing harness for optimum performance. The horizontal pattern is field-adjustable for any current or future coverage requirements. The wide bandwidth and high efficiency make it ideal for many applications, including military communications, trunking, and business.
Each dipole element is constructed with 6061-T6 aluminum and welded at the base for maximum strength. Each antenna is also completely sealed with Telewave's high-tech Txylan™ coating. This coating resists water and ice buildup, and provides exceptional protection from corrosive gases, UV radiation, salt spray, acid rain, and windblown abrasives. While the phasing harness is fully sealed by Telewave's Millenium Seal™ technology.
Includes:
- Each dipole element includes a heavy-duty custom clamp set for mounting to a 1.5 - 2.5-inch diameter galvanized steel support pipe or tower leg
