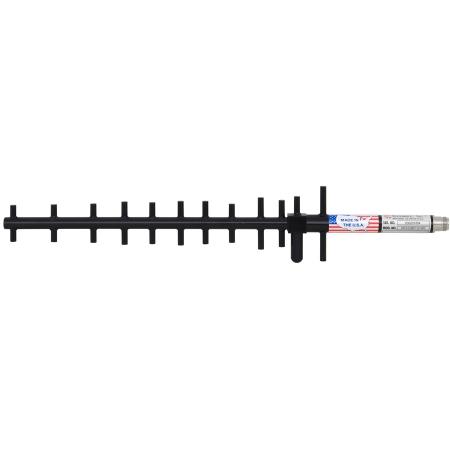

2300 - 2500 MHz 12 dBd 12 Element Yagi Antenna with N Female Connector

Telewave's 2300 - 2500 MHz Yagi antenna with N Female connector. This ANT2350Y12-WR is a rugged, wideband, high-gain Yagi antenna for the Wi-Fi and amateur 13 cm bands. It is designed for handheld use with many types of portable wireless analyzers. It can also be installed for fixed use in any environment. The antenna uses 12 solid brass elements and produces 12 dBd forward gain with exceptional front-to-back performance. Construction and design are optimized to prevent RF intermodulation and ensure precise pattern control.

Each antenna is completely protected with Telewave's high- tech Txylan™ coating, which seals the antenna against corrosive gases, UV radiation, salt spray, acid rain, and wind-blown sand. The feed line is sealed within the antenna boom and an RF-transparent radome protects the driven element from corrosion or icing.

Includes:

• A small U-clamp and plates allow the antenna to be mounted for vertical or horizontal polarization
  • The clamp set can be attached to any vertical mast or tower support between 0.5 - 1.125-inch O.D
  • The universal mount option allows mounting to angled supports up to 3.5-inch O.D. and continuous tilt adjustment
