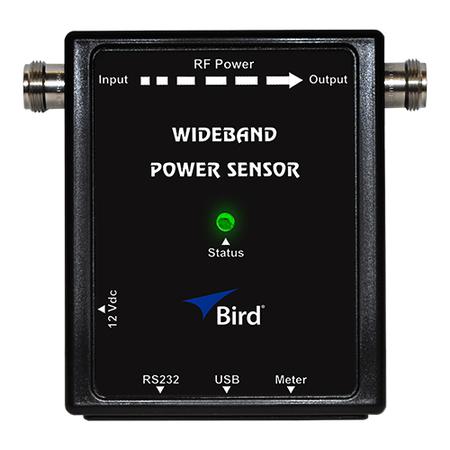

25 MHz - 1 GHz Power Sensor Kit with Adapters

Designed for high-power RF systems below 1 GHz, the Bird 5017D measures true average power, peak power, and duty cycle directly with exceptional accuracy. These measurements are used to calculate a wide range of important factors, including VSWR, return loss, reflection coefficient, crest factor, average burst power, and CCDF.

The 5017D-KIT-1 is built for field flexibility and comes with 7/16 DIN and other commonly used adapters, all conveniently packaged in a durable hard carry case.

Features:

• Frequency range: 25 MHz – 1 GHz
• Power range: 500 mW to 500 W average / 1300 W peak
• Measures: CW, average, and peak envelope power
• Adapters: 7/16 DIN, BNC, TNC, UHF, mini-UHF, and SMA

Applications:

• Transmitter and amplifier testing
• System verification
• Field diagnostics
