2x 698 - 798, 2x 824 - 894, 4x 1695 - 2360 MHz Sector Antenna with 8x 4.3-10 Female Connectors, 45 Deg HPBW

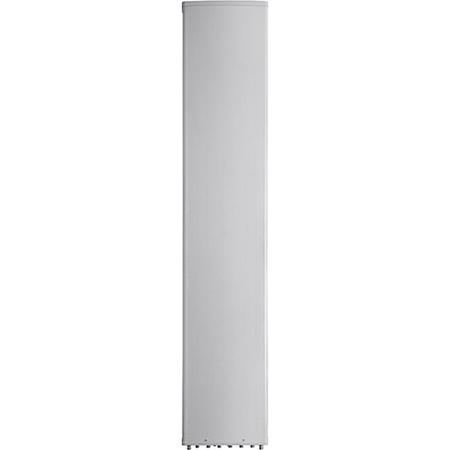

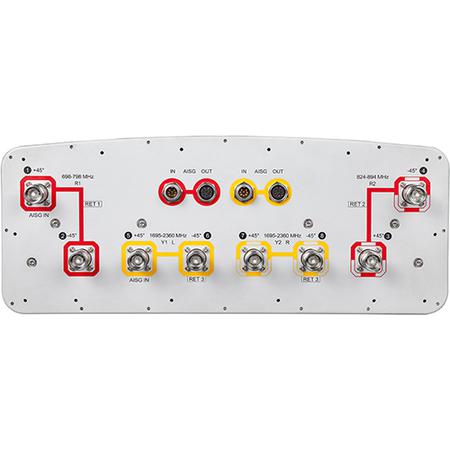

ANDREW an Amphenol company's outdoor 8-port multiband sector antenna. This light gray (RAL 7035) antenna is equipped with eight 4.3-10 Female connectors located on the bottom.

Specifications:

• 2x 698 - 798, 2x 824 - 894, 4x 1695 - 2360 MHz
• 45 Deg HPBW
• Aluminum reflector
• Fiberglass, UV resistant radome

Features:

• Internal SBT on low and high band allow remote RET control from the radio over the RF jumper cable
• One RET for 700 MHz, one RET for 850 MHz, and one RET for both high bands to ensure same tilt level for 4x RX or 4x MIMO
• Internal filter on low band and interleaved dipole technology providing for an attractive and low wind load mechanical package
• Separate RS-485 RET input/output for low and high band
• Narrow beamwidth capacity for higher level of densification and enhanced data throughput

Includes:

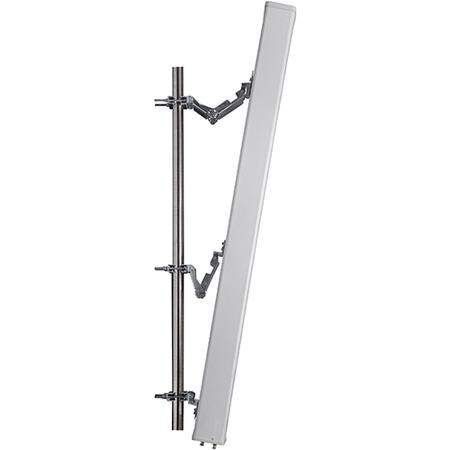

• Wide Profile Antenna Downtilt Mounting Kit for 2.4 - 4.5-inch OD round members
  • Kit contains one scissor top and one bottom bracket set

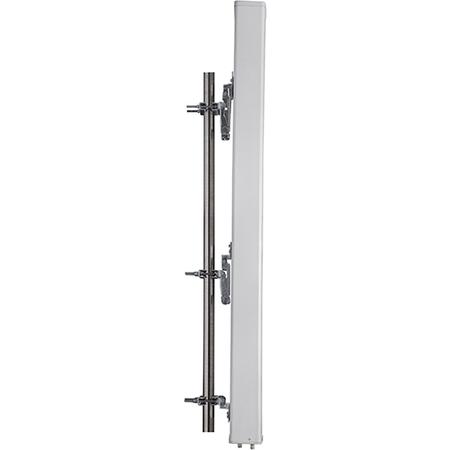

• Middle Downtilt Mounting Kit for Long Antennas for 2.4 - 4.5-inch OD round members
  • Kit contains one scissor bracket set

Compliance/Certification:

• RoHS
• Designed, manufactured and/or distributed under ISO 9001:2015
