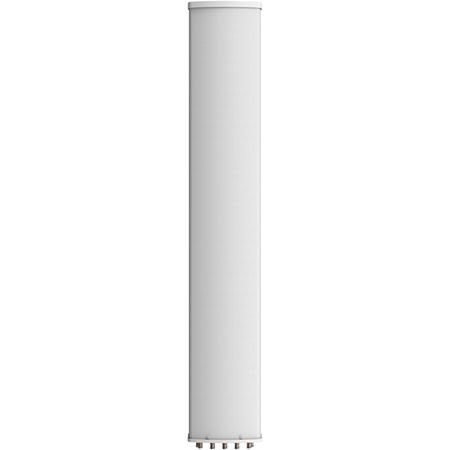

2x 698 - 896, 4x 1695 - 2200, 4x 3550 - 3700 MHz Sector Antenna with 10x 4.3-10 Female Connectors

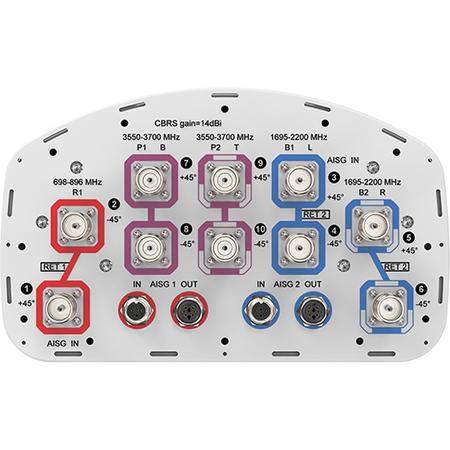

ANDREW an Amphenol company’s outdoor 10-port multiband sector antenna. This light gray (RAL 7035) antenna is equipped with ten 4.3-10 Female connectors located on the bottom. It has interleaved dipole technology providing for an attractive and low wind load mechanical package.

It meets RoHS compliance and is the perfect antenna to add 3.5 GHz CBRs to macro sites.

Specifications:

• 2x 698 - 896, 4x 1695 - 2200, 4x 3550 - 3700 MHz
• Fiberglass, UV resistant radome
• Aluminum reflector

Features:

• Low band and mid band performance mirrors the performance of existing NHH hex port antennas
• Internal SBT on low and mid band allow remote RET control from the radio over the RF jumper cable
• One LB RET and one MB RET
  • Both Mid bands are controlled by one RET to ensure same tilt level for 4x MIMO

Includes:

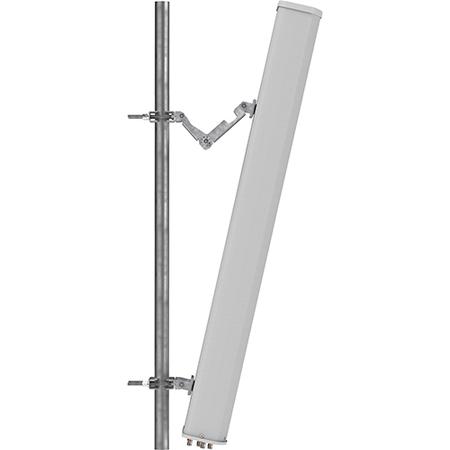

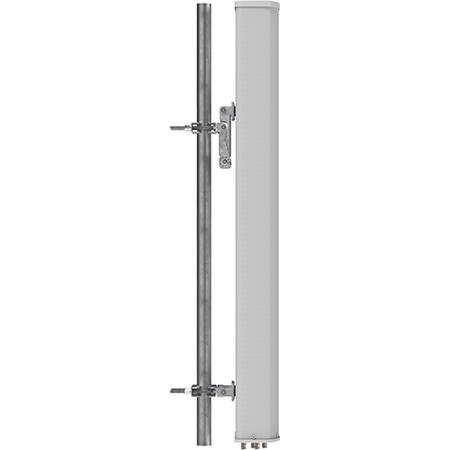

• Wide Profile Antenna Downtilt Mounting Kit for 2.4 - 4.5-inch OD round members
  • Kit contains one scissor top and one bottom bracket set
