2x 698 - 896, 4x 1695 - 2200, 8x 3700 - 4000 MHz Sector and Beamforming Antenna with 14x 4.3-10 Female Connectors

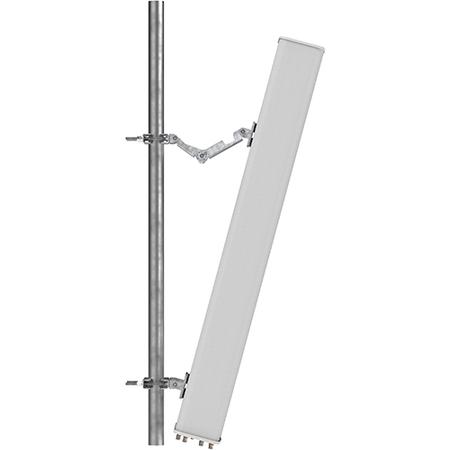

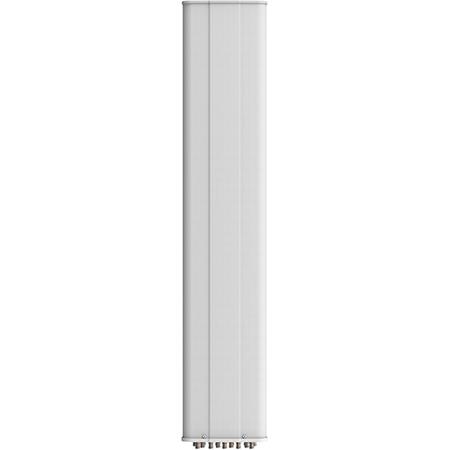

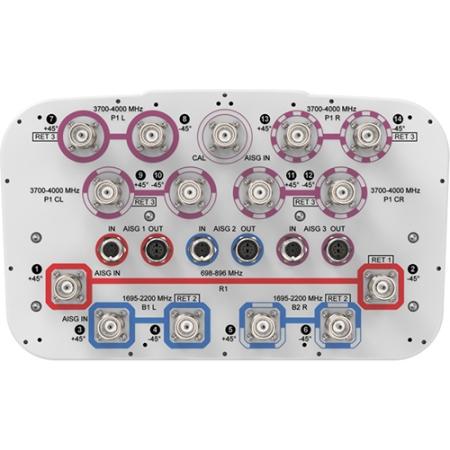

ANDREW an Amphenol company's outdoor 14-port multiband sector and beamforming antenna. This light gray (RAL 7035) antenna is equipped with fourteen 4.3-10 Female connectors located on the bottom.

Specifications:

• 2x 698 - 896, 4x 1695 - 2200 MHz
  • 65 Deg HPBW
• 8x 3700 - 4000 MHz
  • Beamformer
• 3x RET
• Fiberglass, UV resistant radome
• Aluminum reflector

Includes:

• Wide Profile Antenna Downtilt Mounting Kit for 2.4 - 4.5 in OD round members
  • Kit contains one scissor top and one bottom bracket set

Compliance/Certification:

• RoHS
• Designed, manufactured and/or distributed under ISO 9001:2015
