2x 698 - 896, 4x 1695 - 2360 MHz Sector Antenna with 6x 4.3-10 Female Connectors, 65 Deg HPBW

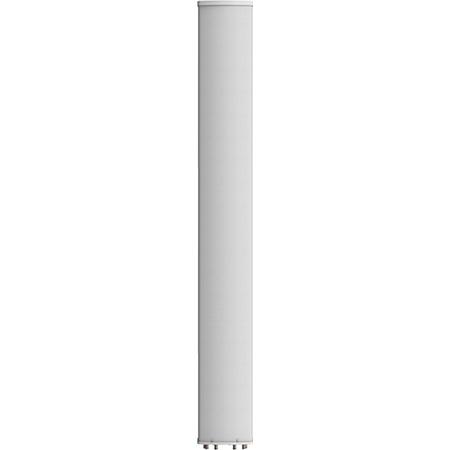

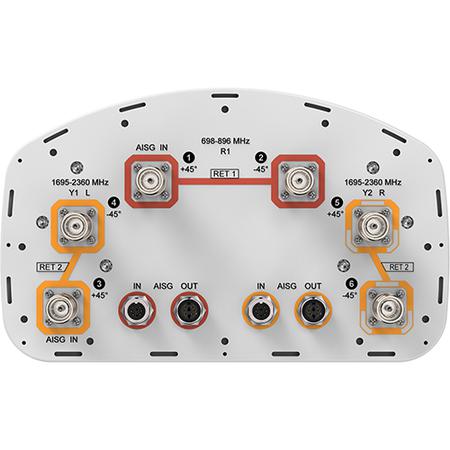

ANDREW an Amphenol company's outdoor 6-port multiband sector antenna. This light gray (RAL 7035) antenna is equipped with six 4.3-10 Female connectors located on the bottom.

It features interleaved dipole technology providing for an attractive and low wind load mechanical package.

Specifications:

• 2x 698 - 896, 4x 1695 - 2360 MHz
• 65 Deg HPBW
• Fiberglass, UV resistant radome
• Aluminum reflector

Benefits:

• Internal SBT on low and high band allow remote RET control from the radio over the RF jumper cable
• Separate RS-485 RET input/output for low and high band
• One RET for low band and one RET for both high bands to ensure same tilt level for 4x RX or 4x MIMO

Includes:

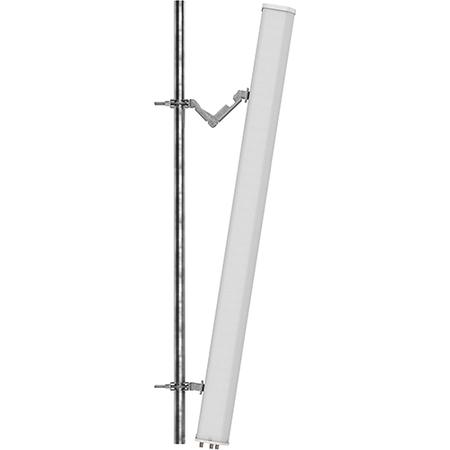

• Wide Profile Antenna Downtilt Mounting Kit for 2.4 - 4.5-inch OD round members
  • Kit contains one scissor top and one bottom bracket set

Compliance/Certification:

• RoHS
• Designed, manufactured and/or distributed under ISO 9001:2015
