2x 698 - 896, 4x 1695 - 2360 MHz Sector Antenna with 6x 7/16 DIN Female Connectors, 65 Deg HPBW

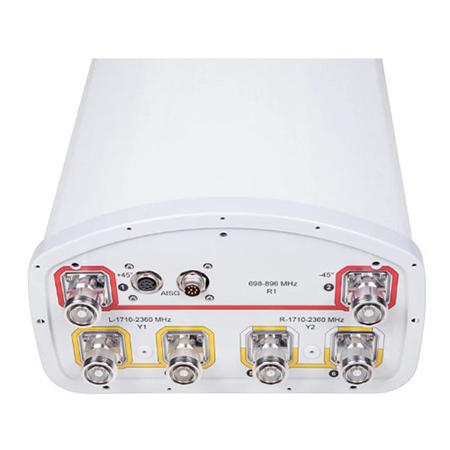

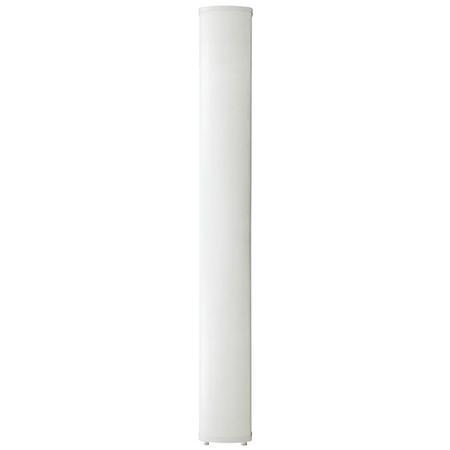

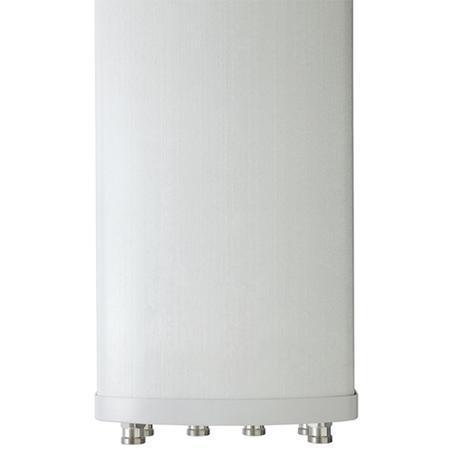

ANDREW an Amphenol company's outdoor 6-port multiband sector antenna. This light gray (RAL 7035) antenna is equipped with six 7/16 DIN Female connectors located on the bottom. It has interleaved dipole technology providing for an attractive and low wind load mechanical package.

Specifications:

• 2x 698 - 896, 4x 1695 - 2360 MHz
• 65 Deg HPBW
• 2x RET
• Both high bands share the same electrical tilt
• Aluminum reflector
• Fiberglass, UV resistant radome

Includes:

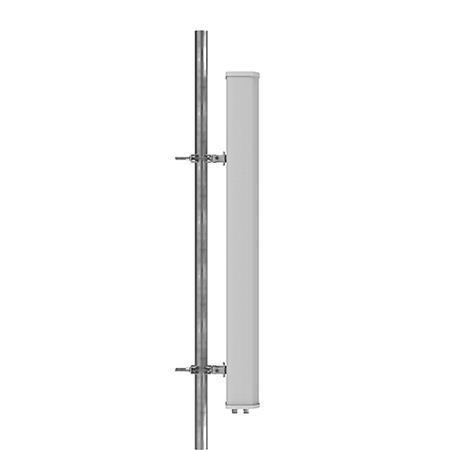

• Mounting bracket for cylindrical pipe installations (60-115 mm pipe diameter) for fix mechanical tilt applications

Note:

• Supplied with mounting kits that provide 0-degree of mechanical downtilt
  • Optional downtilt mounting kits are available

Compliance/Certification:

• RoHS
• Designed, manufactured and/or distributed under ISO 9001:2015
