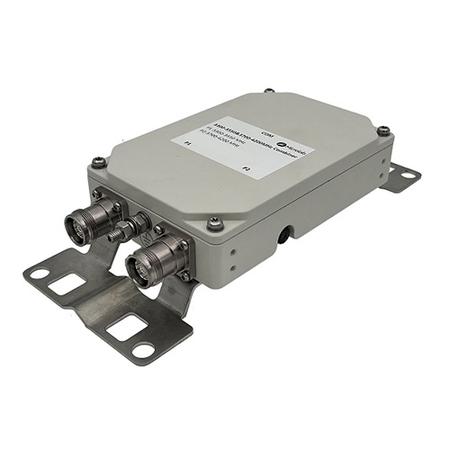

3.45 GHz/C-Band Dual Diplexer with 4.3-10 Female Connectors, 150 W, -161 dBc

Microlab's dual C-band diplexer with 4.3-10 Female connectors. This dual diplexer enables the combining or splitting of 3.45 GHz and C-band for 5G carrier aggregation in DAS and small cells. The wider passbands allow future proofing for technology upgrades within 5G n77 band (3300 - 3550, 3700 - 4200 MHz).

The inputs are well isolated and have minimal insertion loss over their respective frequency bands to minimize band inter-reaction. Attention to mechanical design ensures it guarantees prolonged low passive intermodulation.

Specifications:

• Combines 5G band 3.45 with C-band
• 40 dB input isolation
• 150 W per port
• Guaranteed low PIM
  • -161 dBc
• Minimal RF insertion loss
• IP67 rated
• RoHS compliant

Note: Dual mounted configuration for 2x2 MIMO applications is available as this part number BK-2030EW.
