EMR Corporation
300 - 512 MHz 8 Channel Receiver Multicoupler
TESSCO SKU: 608091
UPC: 608091
QTY/UOM:
1/each
MFG PART #: 25108-0/H-5
Sign In or Register
for preferred pricing!
Added To Cart

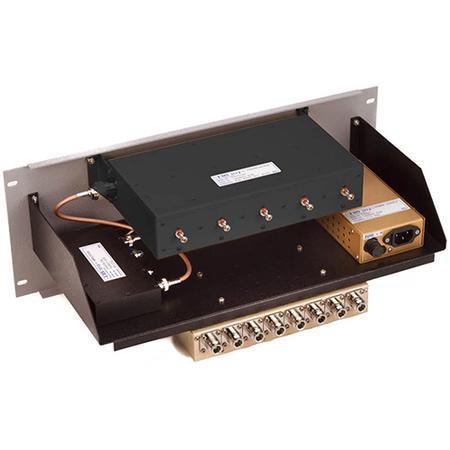

EMR's 300 - 512 MHz 8 channel receiver multicoupler with N Female connectors. Specifications include 5 resonators, 50 Ohm, 1.25:1 max VSWR at resonance, and 13.6 VDC. This unit includes a preselector, amplifier, power supply and power divider which effectively amplify a filtered band of frequencies to individual receivers. The power divider provides a minimum of 23 dB of port-to-port isolation preventing signal mixing even at minimal channel separation.
Features:
- Rugged constructed components
- Flat gain, high performance Low Noise Amplifier
- High compression point, Low IM generation
Mechanical Specifications:
- Gray Panel Finish
- 19-inch EIA
- 3RU
