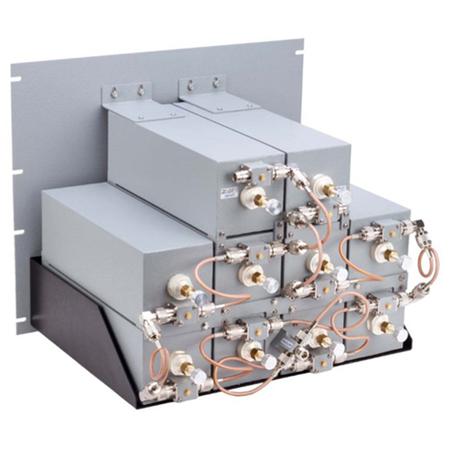

300 - 650 MHz Pass Notch Antenna Duplexer wth N Female Connectors

EMR's 300 - 650 MHz pass notch antenna duplexer with N Female connectors. EMR's signature square cavities provide greater Q while requiring less space than conventional round cavities.

Specifications:

• 9RU
• 150-Watt Maximum input power
• Ten (10) Resonators
• 50 Ohm
• 1.25:1 VSWR
• 80 / 90 dB Insolation TX-RX (Minimum / Typical)
• -22°F to 140°F Operating temperature

Features:

• High Q Square cavities
• Space saving design
• Low insertion loss

Dimensions: (HxWxD) 15.75 x 19 x 17 in | Weight: (Net) 48.85 lb
