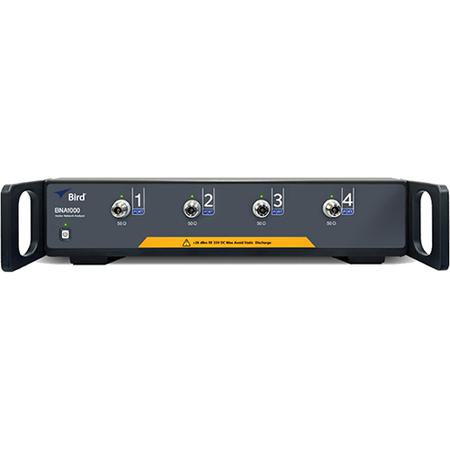

300 kHz - 8.5 GHz Modular Vector Network Analyzer with 4 N Female Connectors
Bird's 300 kHz - 8.5 GHz modular Vector Network Analyzer (VNA) with N Female connectors. This BNA1000 Series is for RF and manufacturing engineers who prioritize precision and versatility in design and production. It uniquely combines the detailed analysis capabilities of a benchtop unit with the adaptability required for diverse manufacturing and R&D environments.
Exceeding the constraints of typical lab focused analyzers and the restricted capabilities of portable models, the BNA1000 offers a broad dynamic range and rapid measurement speed. It caters to the diverse requirements of both manufacturing and RF engineering to ensure a seamless transition from design to production, enhancing both innovation and efficiency.
Specifications:
- 300 kHz - 8.5 GHz frequency range
- > 125 dB dynamic range
- -50 to +10 dBm output power
- 0.002 dB RMS trace noise
- 42 us/point fast measurement speed
- Time Domain analysis with Gating
- User interface software included
Applications:
- Manufacturing Test
- Passive/Active Component Characterization
- RF and Microwave Product Design
- Filter Design and Testing
- Fault Location
- Antenna Tuning
- Quality Control and Incoming Inspection
