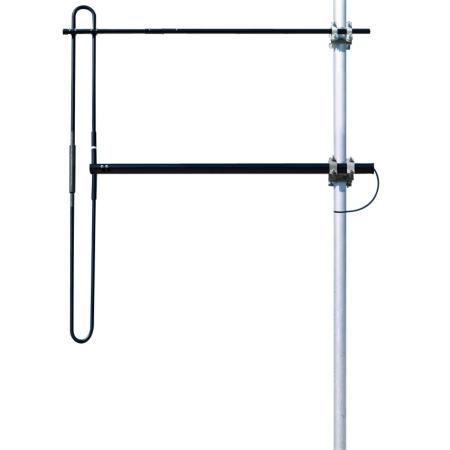

33.5 - 41 MHz 2.5 dBd Single Dipole Antenna with 7/16 DIN Male Connector
Telewave's 33.5 – 41 MHz 2.5 dBd single dipole antenna with 7/16 DIN Male connector. This is a rugged, high-performance antenna designed for VHF low band services, including public safety, utilities, paging links, and military communication. It provides 7.5 MHz bandwidth with no tuning required, and multiple elements can be stacked for increased gain and pattern control.
The antenna is constructed with 6061-T6 aluminum, and is welded at the base to a solid, machined aluminum mounting block for maximum strength. It is also completely sealed with Telewave's high-tech Txylan™ coating. This coating resists water and ice buildup, and provides exceptional protection from corrosive gases, UV radiation, salt spray, acid rain, and windblown abrasives.
Dimensions:
- Dipole: (H x W) 145 x 9 in
- Boom: (L x DIA) 96 x 3.5 in
Includes:
- Mounting hardware which will accommodate a 1.5 - 3.5-inch diameter galvanized steel support pipe or tower leg
- SKU: 355658 | PN: ANTC482
- (Qty 1) ANTLBB element support boom with all required clamps
Note: Due to the size and potential wind loading of this antenna, tower side mounting is recommended.
