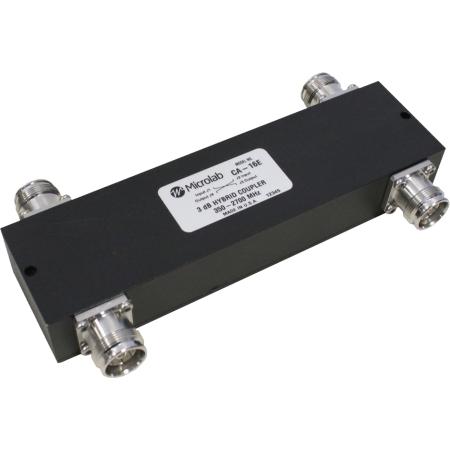

350-2700MHz Ultra Wideband Wireless Hybrid Coupler

  • TESSCO SKU: 200213
  • QTY/UOM: 1 EACH
  • UPC: 646444547727
  • MFG PART #: CA-16E

Microlab CA-16E 350-2700 MHz Ultra Wideband Low PIM Wireless Hybrid Coupler with 4.3-10 Female Connector. Microlab Model Hybrid Couplers have been designed to meet the special needs of the wireless market. They are most commonly used to combine two wireless carriers in the operating band to a single antenna feed or distribution cable. This requires the termination of one output port in 50W and results in a 3 dB loss in each signal. In situations where two similar feeds are required, as required for an in-building application, both outputs may be used eliminating the need for a termination and the 3 dB loss.

Technical Specs

  • RF Connectors
    4.3-10 Female
  • Qty/ Uom
    1 Each
  • Frequency Range
    380-2700 MHz, 358-380 MHz
  • Maximum Power
    200 W
  • Manufacturer
    Microlab/FXR
  • Item Weight
    1.59 lb
  • Temperature Range
    -25-80 deg C
  • Maximum VSWR
    1.20:1
