Microlab/FXR

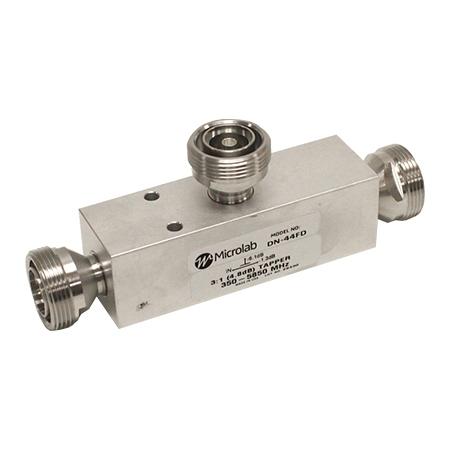

350 - 5930 MHz 4.8 dB (3:1) Tapper with 7/16 DIN Female, 500 W
TESSCO SKU: 268981
UPC: 268981
QTY/UOM:
1/each
MFG PART #: DN-44FD
Sign In or Register
for preferred pricing!
Added To Cart
Microlab’s low PIM tapper splits high power cellular signals in fixed ratios from 1000:1 to 2:1. It does so, with minimal reflections or loss over the key wireless bands in the 350 - 5930 MHz frequency range. (Note: there is no coupling 1550 - 1650 MHz)
The innovative asymmetric design ensures an excellent input VSWR and coupling flatness across those specified bands, even down to the 2:1 split. While the lightweight design allows easy attachment to a wall using the supplied bracket. With only a few solder joints and an air dielectric, loss is minimized, and reliability is enhanced.
Rated IP67 and meets RoHS compliance.
