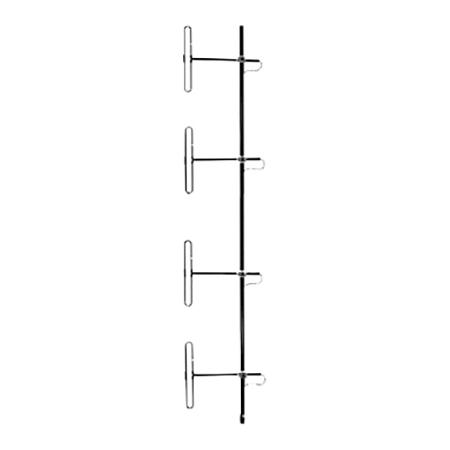

360 - 450 MHz 6 - 9 dBd 4 Element Dipole Array Antenna with N Male Connector

Telewave’s 360 - 450 MHz 6 - 9 dBd four (4) element dipole array antenna with N Male connector. This antenna consists of a precision phasing harness for optimum performance. The horizontal pattern is field adjustable for any current or future coverage requirements. The wide bandwidth and high efficiency make it ideal for many applications, including military communications, TETRA trunking, and amateur radio.

Each dipole element is constructed with 6061-T6 aluminum and welded at the base for maximum strength. Each antenna is also completely sealed with Telewave's high tech Txylan™ coating. This coating resists water and ice buildup, and provides exceptional protection from corrosive gases, ultraviolet (UV) radiation, salt spray, acid rain, and windblown abrasives. While the phasing harness is fully sealed by Telewave’s Millennium Seal™ technology.

Includes:

• Each dipole element includes a heavy-duty custom clamp set for mounting to a 1.5 – 2.5-inch diameter galvanized steel support pipe or tower leg

Notes:

• The support mast is not included
• Up to 15 degrees of electrical uptilt or downtilt may be selected. Please reach out to your Tessco account manager for assistance in adding this tilt angle to your order.
