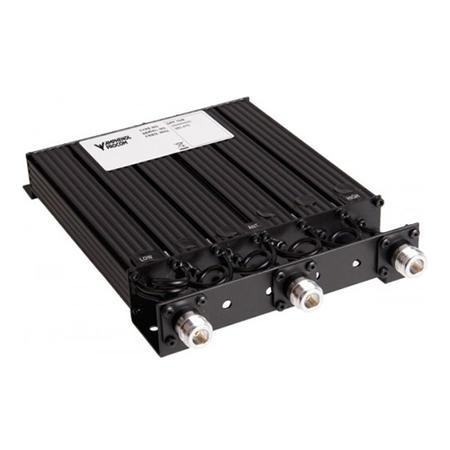

406 - 470 MHz 50 W 6-Cavity Duplex Filter

AMPHENOL PROCOM's 406 - 470 MHz 6-cavity duplex filter for the 450 MHz band.

Features:

• 6-cavity duplex filter for duplex transceivers
• Can be adjusted within the complete 406 - 500 MHz band
• Primarily intended for equipment where the TX and RX operate on single frequencies, but it can also, however with slightly reduced data be used where the TX and RX operate on multi channels
  • Example: within a certain port bandwidth
  • In the last case, factory tuning is recommended
• The filter uses full-length ¼ λ cavities in a compact extruded aluminum housing
• The chassis is made of passivated steel
• Teflon insulation has been applied in the coaxial cables and in the connectors
• Coated with black vinyl to prevent corrosion

Dimensions: 8.9 x 6.0 x 1.3 in | Weight: (Approximately) 2.18 lb

Notes:

• If duplex TX and RX frequencies are stated when ordering, the duplexers are delivered factory adjusted
• If TX and RX frequencies are not stated, the filters are delivered non-adjusted
