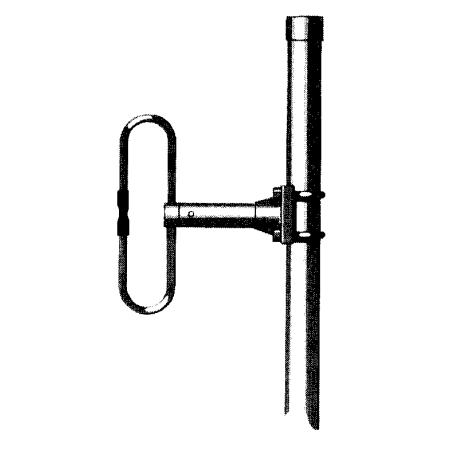

406-512 MHz 2.5dB Dipole Antenna

  • TESSCO SKU: 13667
  • QTY/UOM: 1 EACH
  • UPC: 729198136673
  • MFG PART #: SD310-HF2P4SNM

SINCLAIR 406-512 MHz single dipole ant. 2.5dB offset gain. 75 watts. Includes harness w/N male, internal to mast. 1/4 wave spacing. ORDER MTG. CLAMPS SEP

Technical Specs

  • Maximum Rated Wind Velocity
    270 mile/h
  • Horizontal Beamwidth
    224 deg
  • Item Width
    3.5 in
  • Lightning Protection
    DC Ground
  • Manufacturer
    Sinclair Technologies
  • Type of Hardware Included
    None
  • Gain dBi
    4.6 dBi
  • Item Height
    60 in
  • Vertical Beamwidth
    68 deg
  • Jumper Included
    Yes
  • Item Length
    10.5 in
  • Connector Placement
    Pigtail
  • Antenna Pattern
    Offset
  • Specific Frequency
    406-512 MHz
  • Polarization
    Vertical
  • Qty/ Uom
    1 Each
  • RF Connectors
    N Male
  • Item Weight
    7.5 lb
  • Maximum VSWR
    1.5:1
  • Tuned Frequency (MHz)
    406-512
  • Maximum Power
    75 W
  • Gain dBd
    2.5 dBd
