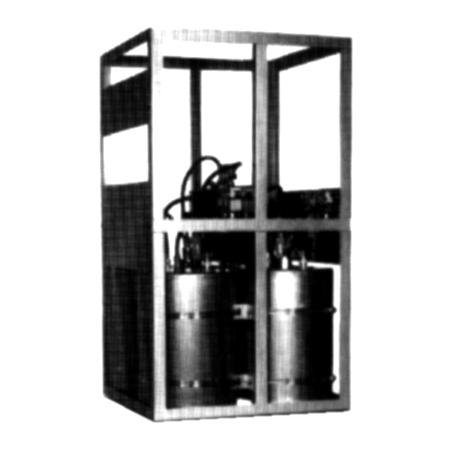

406-512 MHz 4 Channel Combiner

  • TESSCO SKU: 18502
  • QTY/UOM: 1 EACH
  • UPC:
  • MFG PART #: CT4-450F

SINCLAIR 406-512 MHz Tx Combiner. Four channel. Cavity-ferrite type. 100 kHz min. spacing. Incl. open frame. *Factory tune

Technical Specs

  • Frequency Range
    406-512 MHz
  • Electrical Combiner Type
    Cavity
  • Cavity Type
    1/2 Wave
  • Item Length
    21 in
  • Maximum VSWR
    1.25:1
  • Tuning Method
    Factory Tune
  • Qty/ Uom
    1 Each
  • Manufacturer
    Sinclair Technologies
  • Number of Channels
    4
  • Item Height
    38 in
  • Channel Separation
    0.1 MHz
  • Minimum Isolation
    70 dB
  • Power Per Channel
    125 W
  • Isolator Type
    Dual
  • Operating Temperature Range
    -30-60 deg C
  • RF Connectors
    N Female
  • Item Width
    21 in
