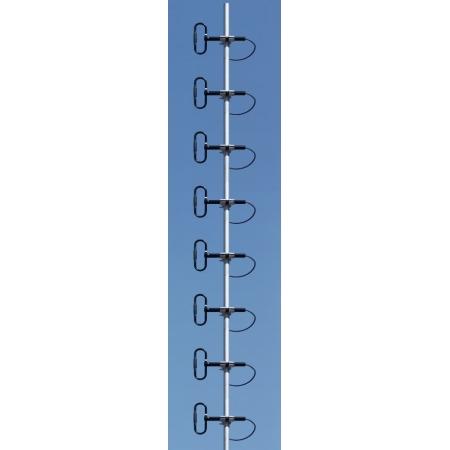

406 - 512 MHz 7 - 12 dBd 8 Element Folded Dipole Array Antenna with N Male Connector

Telewave's 406 - 512 MHz 7 - 12 dBd folded dipole array antenna with N Male connector. This antenna consists of a precision phasing harness for optimum performance. The horizontal pattern is field-adjustable to accommodate any current or future coverage requirements. The high gain, wide bandwidth, and high efficiency make it ideal for many applications including trunking, business, public safety, and amateur radio.

Each antenna consists of two (2) arrays of four (4) elements with a power divider in the center which greatly reduces feedline losses. Each dipole element is constructed with 6061-T6 aluminum and welded at the base for maximum strength. Each antenna is also completely sealed with Telewave's high-tech Txylan™ coating. This coating resists water and ice buildup and provides exceptional protection from corrosive gases, UV radiation, salt spray, acid rain, and windblown abrasives. While the phasing harness is fully sealed by Telewave’s Millenium Seal™ technology.

Includes:

• Each element includes a heavy-duty custom clamp set for mounting to a 1.5 - 2.5-inch diameter galvanized steel support pipe or tower leg

Notes:

• All components are at DC ground for lightning protection
• The support mast is not included
