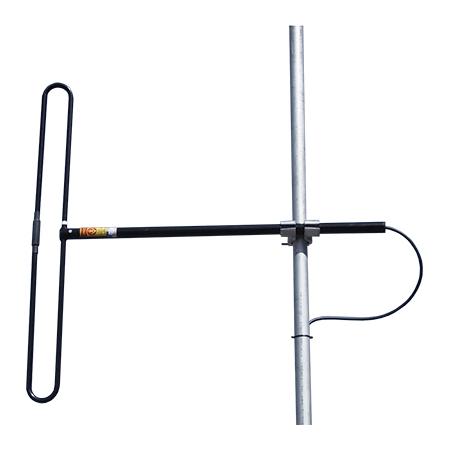

45 - 54 MHz 1 - 2.5 dBd Single Dipole Antenna with N Male Connector
Telewave's 45 - 54 MHz 1 - 2.5 dBd single dipole antenna with N Male connector. This rugged, high-performance antenna is designed for VHF low band services including public safety, utilities, military communication, and amateur radio. It provides 9 MHz bandwidth with no tuning required. The horizontal pattern is adjustable and multiple elements can be stacked for increased gain and pattern control.
The antenna is constructed with 6061-T6 aluminum and is welded at the base to a solid, machined aluminum mounting block for maximum strength. It is completely sealed with Telewave's high-tech Txylan™ coating. This coating resists water and ice buildup, and provides exceptional protection from corrosive gases, UV radiation, salt spray, acid rain, and windblown abrasives.
Dimensions:
- Dipole: (H x W) 108 x 9 in
- Boom: (L x DIA) 96 x 3.5 in
Includes:
- Mounting hardware which will accommodate a 1.5 - 3.5-inch diameter galvanized steel support pipe or tower leg
- SKU: 355658 | PN: ANTC482
Note: Due to the size and potential wind loading of this antenna, tower side mounting is recommended.
