45G 180 ft Guyed Tower Kit

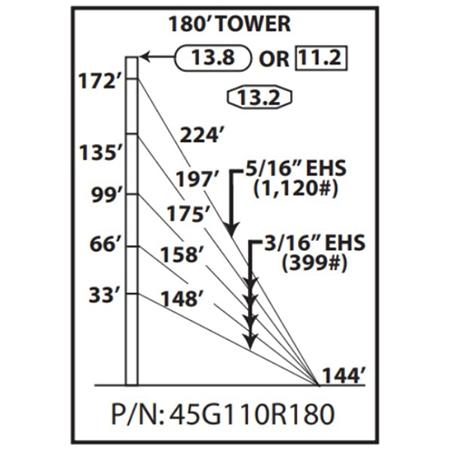

ROHN’s complete guyed tower kits make it easier than ever for you to get everything you need for your next tower installation. The Rohn R-45G110R180 180 ft guyed tower kit contains all hardware necessary to construct a complete 180 ft guyed tower suitable for use in areas with 110 mph Rev G / 90 mph Rev F wind speeds. See recommended maximum loadings below. The tower kit includes: BRBR Seventeen (17) standard 10 ft 45G tower sectionsBR One (1) 10 ft 45G tower section with ground lug at 2 ft BR One (1) flat top beacon plateBR One (1) concrete base plateBR Four (4) guy bracketsBR (2175 ft) 3/16 in EHS guy strandBR (725 ft) 5/16 in EHS guy strandBR Twenty-four (24) 3/16 in big gripsBR Six (6) 5/16 in big gripsBR Twenty-four (24) 5/16 in thimblesBR Six (6) 7/16 in thimblesBR Fifteen (15) 3/8 in eye and jaw turnbucklesBR Three (3) guy anchorsBR One (1) anchor grounding kitBR Three (3) tower base grounding kitsBR Three (3) guy wire ground clampsBR One (1) pier pinBR Three (3) turnbuckle safety kitsBRBR*Lug section required for 5/16-in guy
Geotechnical surveys are always recommended prior to any tower installation. If you would like for TESSCO to recommend a tower for your particular application please fill out and submit a Tower Calculation Request Form. If you choose to purchase a tower from TESSCO (as a kit or in parts) without submitting a Tower Design Questionnaire, you may do so at your own risk.
TESSCO is not responsible for the subsequent success or failure of your tower installation or damages that may result from improper installation or overloading. In other words, if you're not sure which tower you need fill out the Tower Calculation Request Form and we'll help you.
