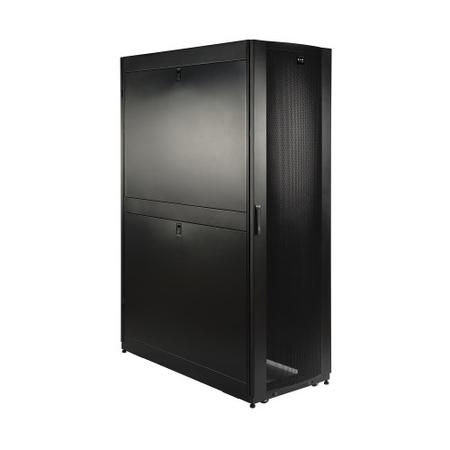

45U SmartRack Deep Rack Enclosure Cabinet with Doors and Side Panels
Tripp Lite’s 45U SmartRack deep rack enclosure cabinet. This is a deeper version of their standard 45U SmartRack® rack enclosure. It is 1143 millimeters deep (45-inches) compared to the standard 1050 millimeters. The extra depth allows for high-density equipment installations. It allows extra space for moving the cable management back, as well as providing space for mounted equipment that has hot-swap, removable power supplies out the back of the enclosure. It features a massive front-to-rear ventilation capacity that meets or exceeds server manufacturer requirements. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations.
With its locking, reversible, removable front and rear doors and locking, removable side panels, it provides ultimate equipment safety. The side panels are half size for ease of removal and reinstallation. The split rear door design allows the enclosure to be placed closer to a wall. It meets all requirements toward PCI DSS compliance. The top panel is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing and can be quickly removed without tools. To facilitate cable access, the SR45UBDP is open bottom. All components are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.
It houses 3,500 pounds of standard 19-inch rack equipment in 45U. To simplify deployment, it comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers.
Includes:
- SR45UBDP Rack Enclosure
- (Qty 4) Side panels
- (Qty 4) Side panel locks
- (Qty 2) Door and side panel keys
- (Qty 50) M6 screws
- (Qty 50) M6 cage nuts
- (Qyt 50) M6 washers
- Owner's Manual
Note: The casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.
