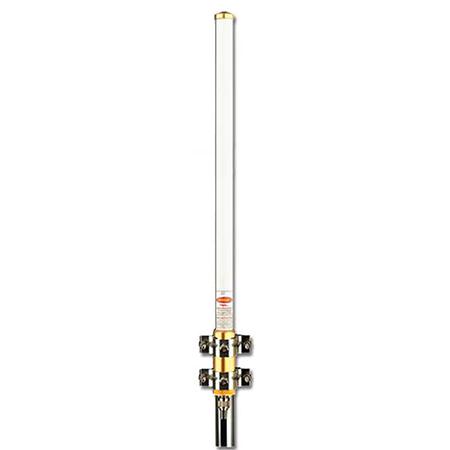

460-470MHz 7dB Fiberglass Omni Antenna

  • TESSCO SKU: 18678
  • QTY/UOM: 1 EACH
  • UPC: 729198186784
  • MFG PART #: FG4607

Laird FG4607 7 dBd gain fiberglass omnidirectional antenna operates in the 460 - 470 MHz frequency range. This UHF omni antenna has a gold-anodized sleeve that will not oxidize and is terminated with an N female connector. Maximum power input is 100 watts. Order the FM1 or FM2 mount separately.

Laird Technologies FG4607 is an economical fiberglass omnidirectional antenna. This UHF antenna is the perfect solution to your base station needs. Commonly used for application in public safety and private networks this compact antenna produces a high quality, focused beam provides the highest gain and best efficiency.

Technical Specs

  • Manufacturer
    Laird Connectivity, Inc.
  • Maximum Rated Wind Velocity
    125 mile/h
  • Maximum VSWR
    2.0:1
  • RF Connectors
    N Female
  • Maximum Power
    100 W
  • Polarization
    Vertical
  • Gain dBd
    7 dBd
  • Type of Jumper Included
    Not Specified
  • Specific Frequency
    460-470 MHz
  • Item Weight
    4 lb
  • Gain dBi
    9.15 dBi
  • Item Length
    107 in
  • Type of Hardware Included
    None
  • Jumper Included
    No
  • Qty/ Uom
    1 Each
  • Lightning Protection
    DC Ground
