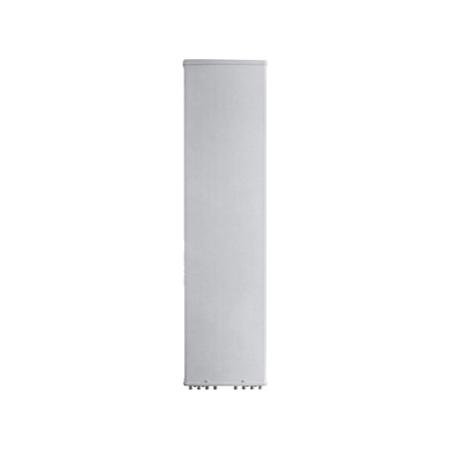

4x 698 - 896, 4x 1695 - 2360 MHz Outdoor Sector Antenna with 8x 4.3-10 Female Connectors, 45 Deg HPBW

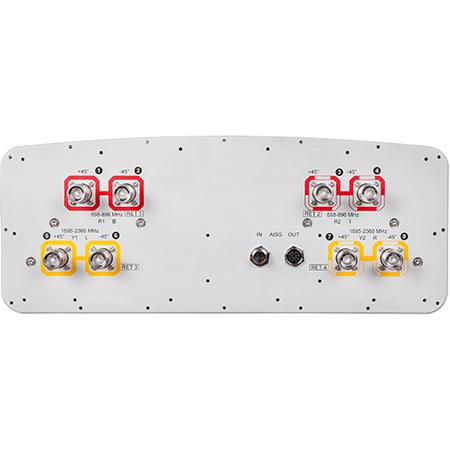

ANDREW an Amphenol company’s outdoor 8-port multiband sector antenna. This light gray (RAL 7035) antenna is equipped with eight 4.3-10 Female connectors located on the bottom. It features interleaved dipole technology providing for an attractive and low wind load mechanical package.

Specifications:

• 4x 698 - 896, 4x 1695 - 2360 MHz
• 45 Deg HPBW
• 4x RET
• Fiberglass, UV resistant radome
• Aluminum reflector

Includes:

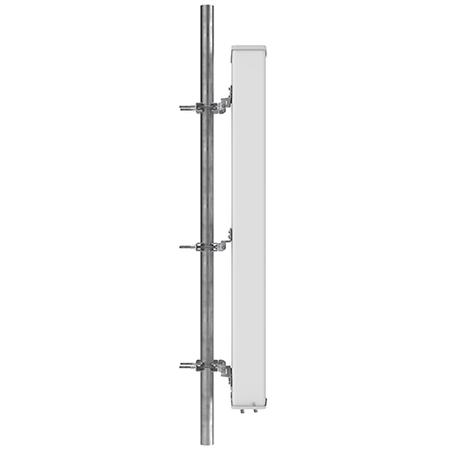

• Mounting bracket for cylindrical pipe installations (60-115 mm pipe diameter) for fix mechanical tilt applications

Compliance/Certification:

• RoHS
• Designed, manufactured and/or distributed under ISO 9001:2015

Note:

• The antenna is supplied with mounting kits that provide 0 degree of mechanical downtilt
  • Optional downtilt mounting kits are available
