4x 698 - 896, 8x 1695 - 2360, 4x 3550 - 3700 MHz Sector Antenna with 16x 4.3-10 Female Connectors, 65 Deg HPBW

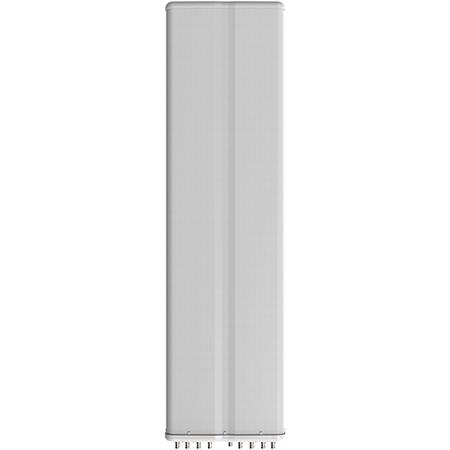

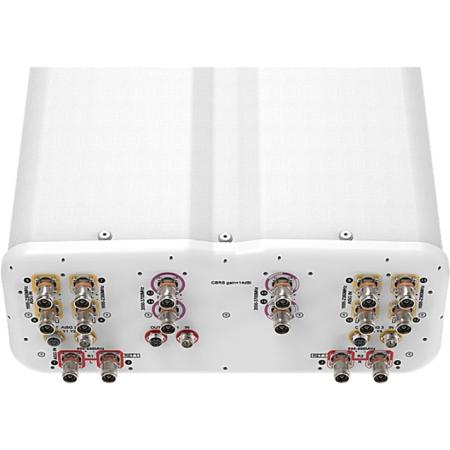

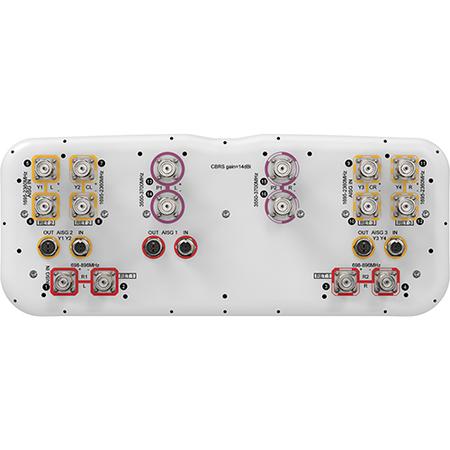

ANDREW an Amphenol company’s 16-port multiband sector antenna. This light gray (RAL 7035) antenna is equipped with sixteen 4.3-10 Female connectors located on the bottom. It is designed for outdoor usage as it provides excellent wind loading characteristics.

It features broadband low band (698 - 896 MHz) and high band (1695 - 2360 MHz) arrays for 4T4R (4X MIMO) capability for Band 14, AWS, PCS, and WCS applications. It is the perfect antenna to add 3.5 GHz CBRS to macro sites.

Specifications:

• 4x 698 - 896, 8x 1695 - 2360, 4x 3550 - 3700 MHz
• 65 Deg HPBW
• 3x RET and 3x SBT
• Fiberglass, UV resistant radome
• Aluminum reflector

Features:

• Array configuration provides capability for 4T4R (4x MIMO) on low and high bands
• Non-stacked high band array design provides higher gain and narrower vertical beamwidth than traditional designs

Includes:

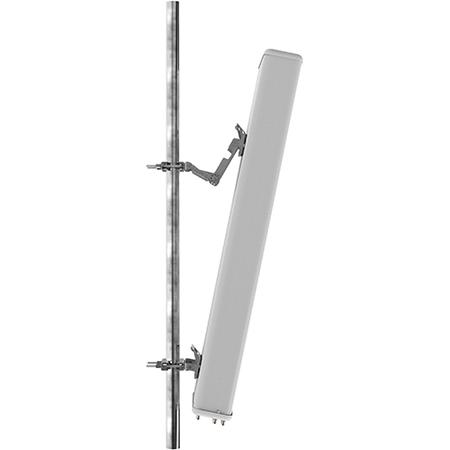

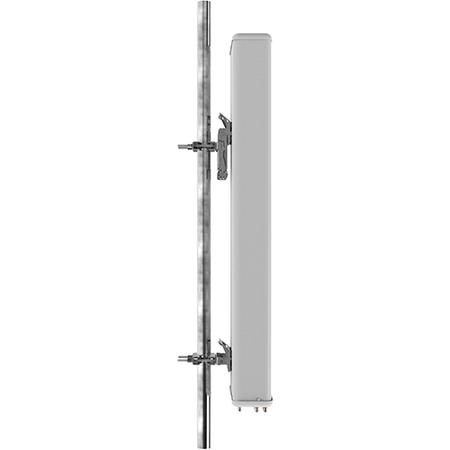

• Wide Profile Antenna Downtilt Mounting Kit for 2.4 - 4.5-inch OD round members
  • Kit contains one scissor top and one bottom bracket set

Compliance/Certification:

• RoHS and REACH-SVHC
• Designed, manufactured and/or distributed under ISO 9001:2015
