4x 698 - 896, 8x 1695 - 2360 MHz Outdoor Sector Antenna with 12x 4.3-10 Female Connectors

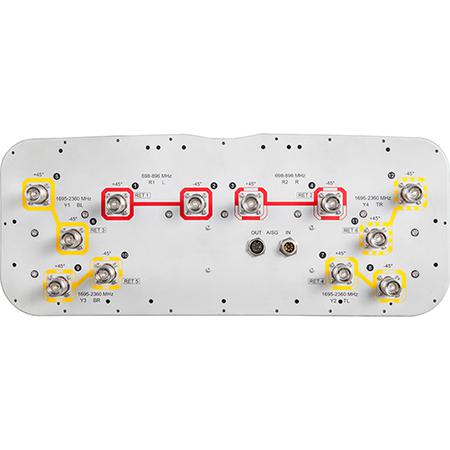

ANDREW an Amphenol company’s outdoor 12-port multiband sector antenna. This light gray (RAL 7035) antenna is equipped with twelve 4.3-10 Female connectors located on the bottom.

Specifications:

• 4x 698 - 896, 8x 1695 - 2360 MHz
• 65 Deg HPBW
• 6x RET
• Fiberglass, UV resistant radome
• Aluminum reflector

Features:

• Interleaved dipole technology providing for an attractive and low wind load mechanical package
• Array configuration provides capability for 4T4R (4x MIMO) on Low band and Dual 4T4R (4x MIMO) on High band
• Optimized SPR performance across all operating bands
• Excellent wind loading characteristics
• The antenna is supplied with mounting kits that provide 0-degree of mechanical downtilt
  • Optional downtilt mounting kits are available

Includes:

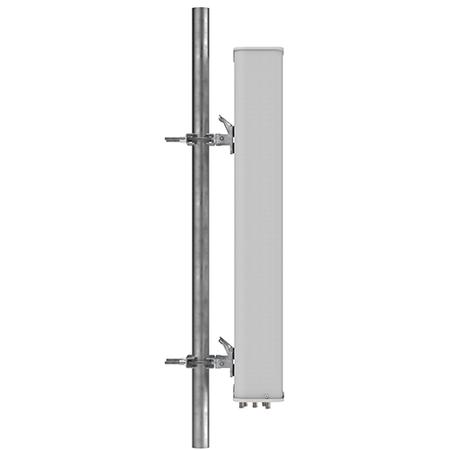

• Mounting bracket for cylindrical pipe installations (60-115 mm pipe diameter) for fix mechanical tilt applications

Compliance/Certification:

• RoHS and REACH-SVHC
• Designed, manufactured and/or distributed under ISO 9001:2015
