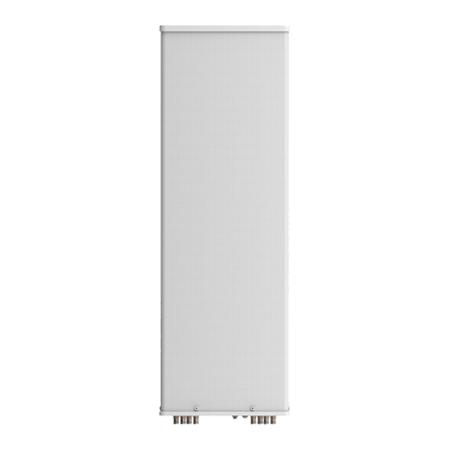

4x 698 - 896, 8x 1695 - 2360 MHz Outdoor Sector Antenna with 12x 4.3-10 Female Connectors, 45 Deg HPBW

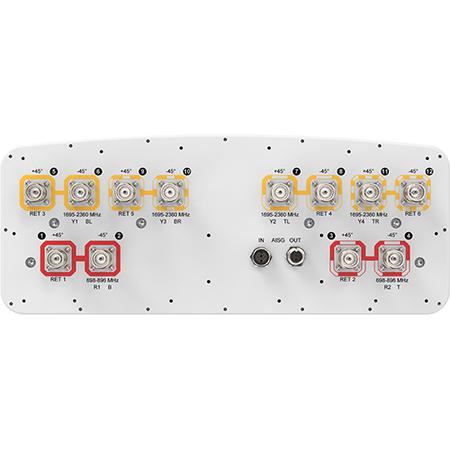

ANDREW an Amphenol company’s outdoor 12-port multiband sector antenna. This light gray (RAL 7035) antenna is equipped with twelve 4.3-10 Female connectors located on the bottom. It features broadband low band (698 - 896 MHz) and high band (1695 - 2360 MHz) arrays for 4T4R (4X MIMO) capability for Band 14, AWS, PCS, and WCS applications.

Specifications:

• 4x 698 - 896, 8x 1695 - 2360 MHz
• 45 Deg HPBW
• 6x RET
• Fiberglass, UV resistant radome
• Aluminum reflector

Benefits:

• Array configuration provides capability for
  • 4T4R (4x MIMO) on Low band
  • Dual 4T4R (4x MIMO) on High band
• Optimized SPR performance across all operating bands
• Excellent wind loading characteristics
• Independent tilt for all arrays

Certification:

• Designed, manufactured and/or distributed under ISO 9001:2015

Includes:

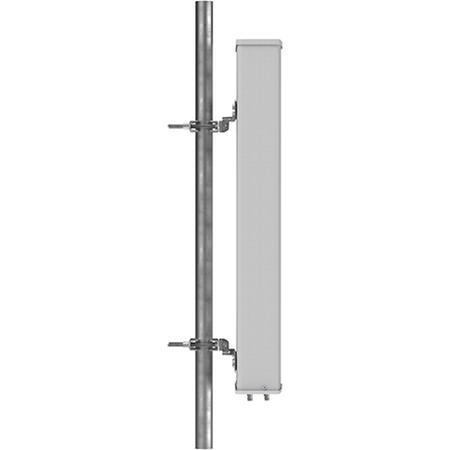

• Mounting bracket for cylindrical pipe installations (60-115 mm pipe diameter) for fix mechanical tilt applications
