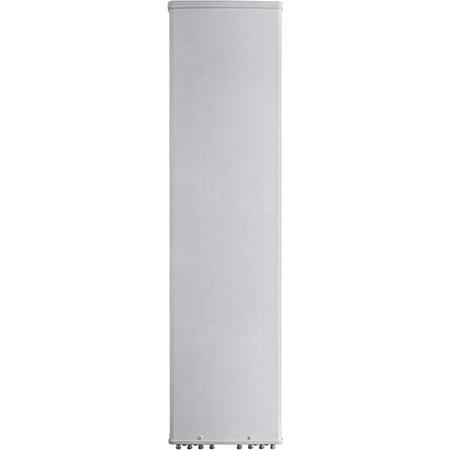

4x 698 - 896, 8x 1695 - 2360 MHz Outdoor Sector Antenna with 12x 4.3-10 Female Connectors, 45 Deg HPBW

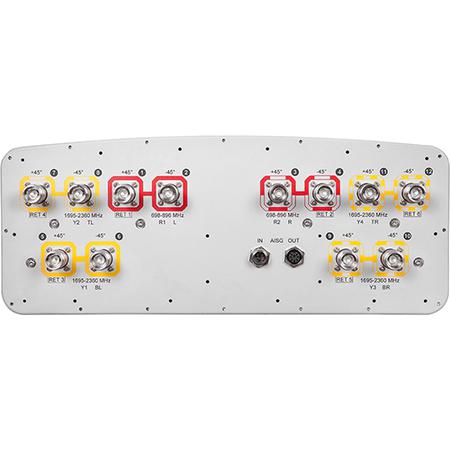

ANDREW an Amphenol company’s outdoor 12-port multiband sector antenna. This light gray (RAL 7035) antenna is equipped with twelve 4.3-10 Female connectors located on the bottom.

It features broadband Low Band (698 - 896 MHz) and High Band (1695 - 2360 MHz) arrays for 4T4R (4X MIMO) capability for Band 14, AWS, PCS, and WCS applications.

Benefits:

• Independent tilt for all arrays
• Array configuration provides capability for
  • 4T4R (4x MIMO) on Low band
  • Dual 4T4R (4x MIMO) on High band
• Optimized SPR performance across all operating bands
• Excellent wind loading characteristics

Includes:

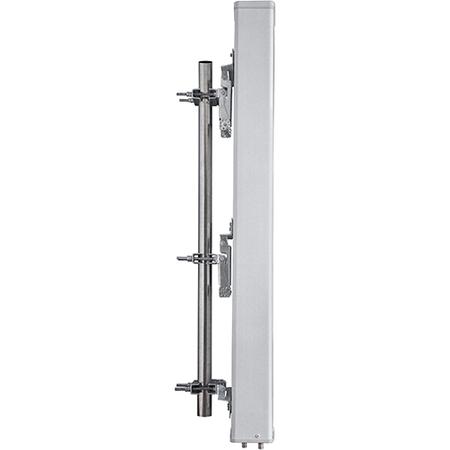

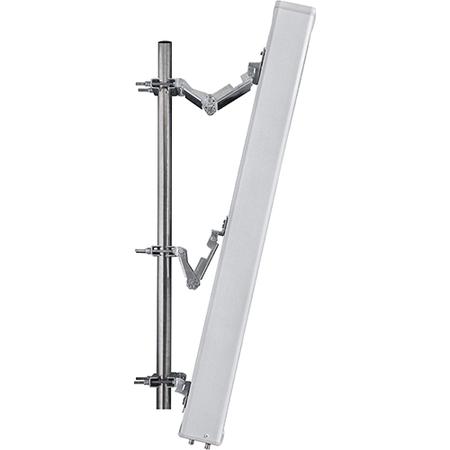

• Wide Profile Antenna Downtilt Mounting Kit for 2.4 - 4.5-inch OD round members
  • Kit contains one scissor top and one bottom bracket set
• Middle Downtilt Mounting Kit for Long Antennas for 2.4 - 4.5-inch OD round members
  • Kit contains one scissor bracket set

Compliance/Certification:

• RoHS
• Designed, manufactured and/or distributed under ISO 9001:2015
