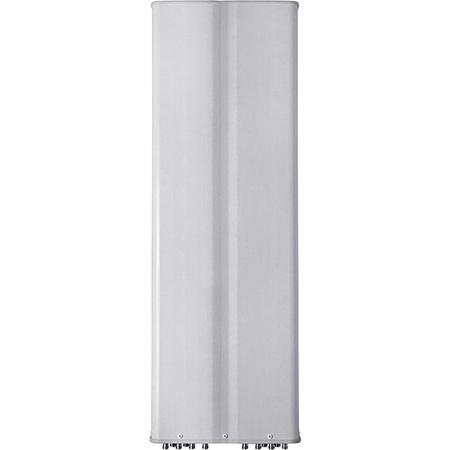

4x 698 - 896, 8x 1695 - 2360 MHz Outdoor Sector Antenna with 12x 4.3-10 Female Connectors

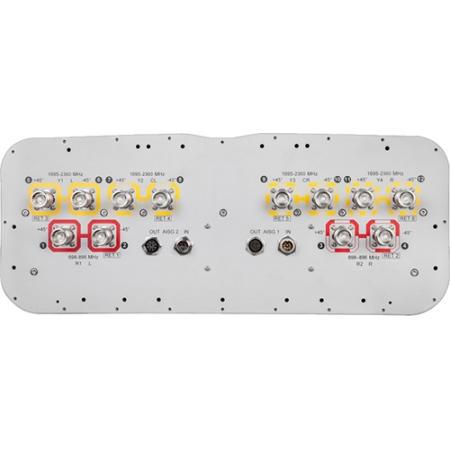

ANDREW an Amphenol company’s outdoor 12-port multiband sector antenna. This light gray (RAL 7035) antenna is equipped with twelve 4.3-10 Female connectors located on the bottom. It features broadband Low Band (698 - 896 MHz) and High Band (1695 - 2360 MHz) arrays for 4T4R (4X MIMO) capability for Band 14, AWS, PCS, and WCS applications.

Features:

• Non-stacked high band array design provides higher gain and narrower vertical beamwidth than traditional antenna designs
• Independent tilt for all arrays
• Array configuration provides capability for 4T4R (4x MIMO) on Low band and Dual 4T4R (4x MIMO) on High band
• Optimized SPR performance across all operating bands
• Excellent wind loading characteristics
• Supports re-configurable antenna sharing capability enabling control of the internal RET system using up to two separate RET compatible OEM radios

Includes:

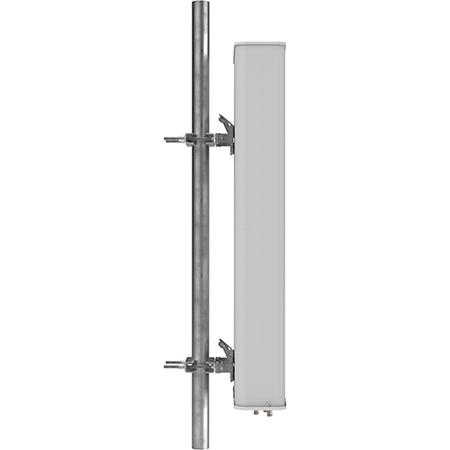

• Mounting bracket for cylindrical pipe installations (60-115 mm pipe diameter) for fix mechanical tilt applications

Compliance/Certification:

• RoHS
• Designed, manufactured and/or distributed under ISO 9001:2015
