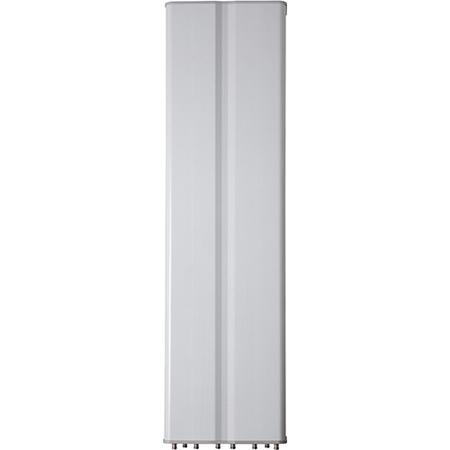

4x 698 - 896, 8x 1695 - 2360 MHz Outdoor Sector Antenna with 12x 4.3-10 Female Connectors, 65 Deg HPBW

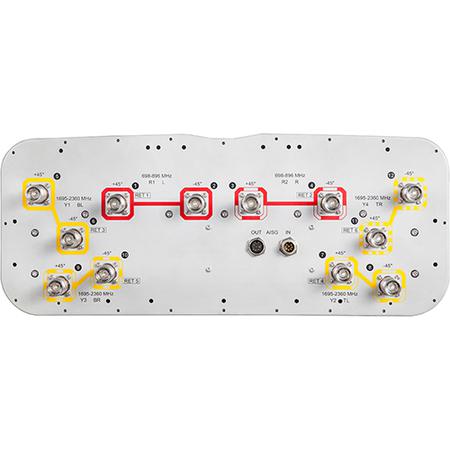

ANDREW an Amphenol company’s 12-port multiband sector antenna. This antenna is equipped with twelve 4.3-10 Female connectors located on the bottom. It features broadband low band (698 - 896 MHz) and high band (1695 - 2360 MHz) arrays for 4T4R (4X MIMO) capability for Band 14, AWS, PCS, and WCS applications.

It is designed for outdoor usage as it has excellent wind loading capabilities.

Specifications:

• 4x 698 - 896, 8x 1695 - 2360 MHz
• 65 Deg HPBW
• 6x RET
• Fiberglass, UV resistant radome
• Aluminum reflector

Features:

• Independent tilt for all arrays
• Array configuration provides capability for
  • 4T4R (4x MIMO) on low band
  •  Dual 4T4R (4x MIMO) on high band
• Optimized SPR performance across all operating bands

Compliance/Certification:

• RoHS
• Designed, manufactured and/or distributed under ISO 9001:2015

Note:

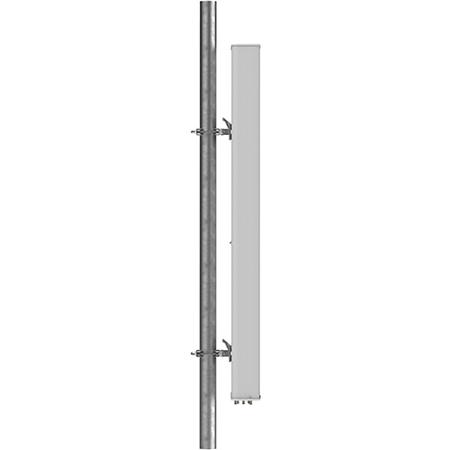

• The antenna is supplied with mounting kits that provide 0-degree of mechanical downtilt
  • Optional downtilt mounting kits are available
