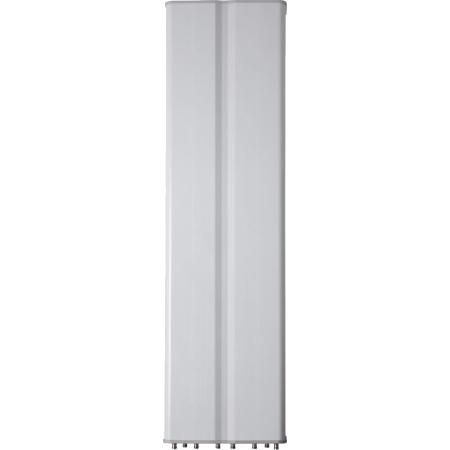

4x 698 - 896 and 4x 1695 - 2360 MHz Sector Antenna with 8x 4.3-10 Female Connectors

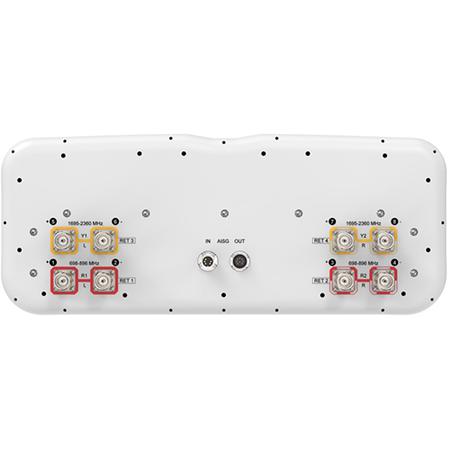

ANDREW an Amphenol company's outdoor 8-port multiband sector antenna. This antenna is equipped with eight 4.3-10 Female connectors located on the bottom. It provides optimized SPR performance across all operating bands. It also has excellent wind loading characteristics.

The array configuration provides capability for 4T4R (4x MIMO) on the low and high band.

Specifications:

• 4x 698 - 896 and 4x 1695 - 2360 MHz
• 65 Deg HPBW
• 4x RET
• Fiberglass, UV resistant radome
• Aluminum reflector

Includes:

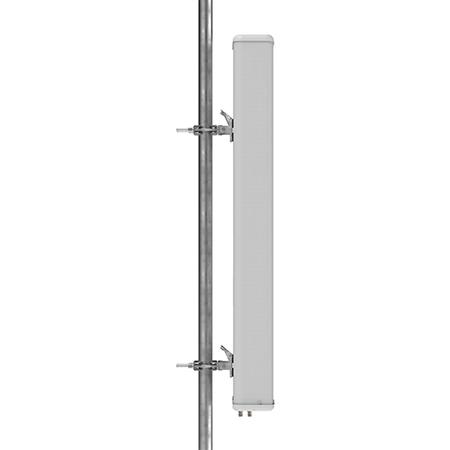

• Mounting bracket for cylindrical pipe installations (60-115 mm pipe diameter) for fix mechanical tilt applications

Compliance/Certification:

• RoHS
• Designed, manufactured and/or distributed under ISO 9001:2015
